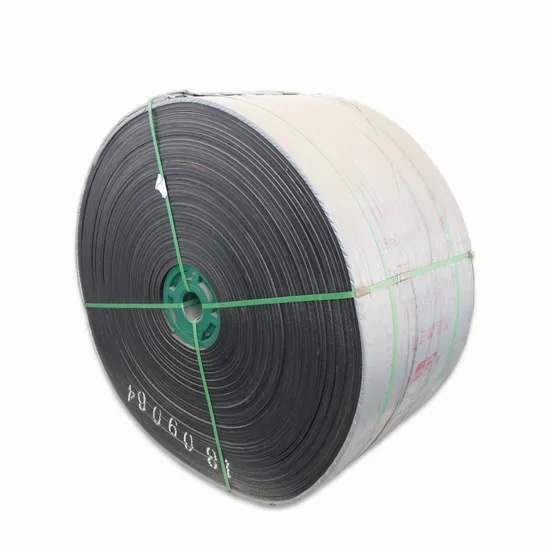

Customized Industrial Rubber Polyester Ep Conveyor Belting Factory (EP100-600)

Product Description

Customized Industrial Rubber Polyester Ep Conveyor Belting Factory (EP100-600)
Product Desription
1. Specification

Fabric Type	Fabric Structure		Fabric Specs	Fabric ply No.	Belt width (mm)	Length (m)	Cover Thickness (mm)
	Warp	Weft					Top	Bottom
Cotton			CC56	2-6	400-2200	5-500	2-12	1.5-6
Polyester (EP)	Polyester (E)	Polyamide (P)	EP100	2-6	400-2200	5-500	2-12	1.5-6
			EP125	2-6	400-2200	5-500	2-12	1.5-6
			EP150	2-6	400-2200	5-500	2-12	1.5-6
			EP200	2-6	400-2200	5-500	2-12	1.5-6
			EP250	2-6	400-2200	5-500	2-12	1.5-6
			EP300	2-6	400-2200	5-500	2-12	1.5-6
			EP400	2-6	400-2200	5-500	2-12	1.5-6
			EP500	2-6	400-2200	5-500	2-12	1.5-6
Nylon (NN)	Nylon-66 (N)	Nylon-66 (N)	NN100	2-6	400-2200	5-500	2-12	1.5-6
			NN125	2-6	400-2200	5-500	2-12	1.5-6
			NN150	2-6	400-2200	5-500	2-12	1.5-6
			NN200	2-6	400-2200	5-500	2-12	1.5-6
			NN250	2-6	400-2200	5-500	2-12	1.5-6
			NN300	2-6	400-2200	5-500	2-12	1.5-6
			NN400	2-6	400-2200	5-500	2-12	1.5-6
			NN500	2-6	400-2200	5-500	2-12	1.5-6

2. Physical Properties of Rubber Cover (before aging)

Grade	Tensile Strength/Mpa ≥	Breaking Elongation/% ≥	Abrasion Loss/mm3 ≤
H	24	450	120
D	18	400	100
L	15	350	200
DIN W	18	400	90
DIN X	25	450	120
DIN Y	20	400	150
DIN K	20	400	200

3. Ply Adhesion

Item	Ply to ply	Rubber cover to ply
		Rubber cover thickness ≤1.5mm	Rubber cover thickness >1.5mm
All samples average value/ (N/mm) ≥	4.5	3.2	3.5
All samples min peak value/ (N/mm) ≥	3.9	2.4	2.9
Note: All samples max peak value is not more than 20N/mm.

Application
EP/nylon conveyor belt is suitable for transporting lump, granular, powdery materials of normal temperature, non-corrosion in general conditions. It is widely used in metallurgy, construction materials, wharf, mining industries.
Why Choose Us
1. Certificate
2. R&D Center and Testing Lab
Packing & Shipping
FAQ
Q1. Are you a manufacturer?
A. Yes, we have been producing and selling conveyor belts since 1982.
Q2. Can you produce belts with my own brand?
A. Yes, we can.
Q3. What about the lead time?
A. 1) 5~7 days for sample (free sample)
2) 15~30 days according to order quantity
Q4. How about payment terms?
A. 1) We prefer T/T, 30% advance paid upon order, rest upon b/l copy, or
2) Sight or deferred L/C, or
3) Other payment terms approved.
Q5. How do you ensure product quality?
A. 1) We have a R&D center of an independent design and developing capacity
2) We an independent testing laboratory with full-property testing capacity of conveyor belt. We can test various materials, rubber, fabric, semi-finished product and finished product.

---
