US$5,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Farming Policy
Dry Cultivating Machinery
Operation
Arable Machinery, Continuous Running Operation
Arbor Configuration
Vertical Shaft
Product Description

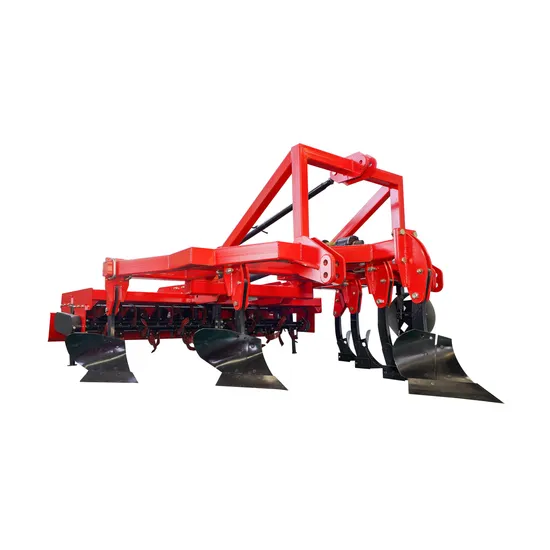

Model | | 1LG-230 Plough and rotary tiller1LG-230 |
Structure type | | Suspension type |
(xx) Overall shape size (length x width x height) | мм | 3450x2500x1500 |
The calibrated power range of matching tractors | kw | 132.3-198.5 |
Operating Speed Range | m/s | 0.56-1.67 |
Method of connection with tractor | | Three-point suspension |
(,) Transmission mode (side, middle) | | middle |
Working width of rotary tilling | мм | 2300 |
Plow body type | | () Basic (general type) |
Number of plough bodies | Штука | 6 |
Width of plow body | мм | 270 |
Model of rotary blade | | IT245 |
Number of rotary blades | Штука | 52 |
Company profile
Hebei Dingguagua Machinery Manufacturing Co. , Ltd. has entered the field of agricultural machinery R & D and manufacturing since 2004. After more than 20 years of hard work and development, it has developed into a high-tech company with high reputation and influence in the field of agricultural machinery in China, specializing in the R & D, manufacturing, sales and after-sales of agricultural machinery.
The company has a strong technical R & D team, and has more than 30 Chinese national invention patents, mainly produces a series of cotton field machinery, including cotton picking machine, packing machine, etc. The series of green fodder harvesters, mainly including green fodder harvesters suitable for harvesting a variety of silage crops, big round baling machines, etc. Sales service network covers China's entire agricultural production area, and products exported to Thailand, Vietnam, the Philippines and other Southeast Asia countries, as well as Turkey and other West Asia countries or regions
Q&A
Q1: What's your lead and delivery time?
A1: Usually machines should be prepared well within 15-20 days, including Sundays when deposit isconfirmed. Delivery time should depend on customers' demands for the delivery way.
Q2: How is your warranty?
A2: Warranty period is 12 (Twelve) months from the startup on site.
Q3: How could l do ifl meet some troubles on operation?
A3. We will let our engineer contact with you to solve it on line. lf necessary, we can send engineers andtranslator to vour factory to train your tech staffs.
>>
