Basic Info.
Number of Cylinder
Binoculars
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Principle of Optics
Polarizing Microscope
Function
Stereo Microscope
Production Capacity
1000 PCS for Each Mouth
Packaging & Delivery
Package Size
40.50cm * 28.00cm * 43.00cm
Package Gross Weight
6.200kg
Product Description
1. Introduction:

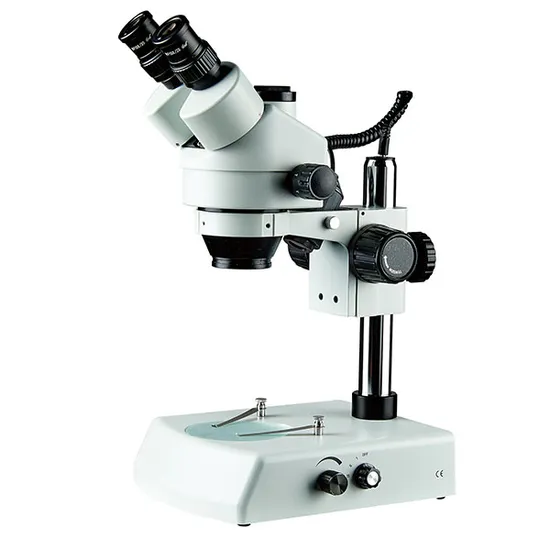

SZM0745 series zoom microscope adopts streamline integrated mechanical design, Easy operation, long working distance, clear resolved image, enclosure integrated. The microscope is used extensively world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. Specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
2. Feature:
| Zoom Ratio | 6.4:1 |
Interpupillar
Distance | 55-75mm |
Eyepiece
tube | Binocular & Trinocular Head Angle of viewing, inclined 45° |
| Main body | Column type |
| Working distance | 100mm |
| Eyepiece | WF10X/22mm High Point Wide Field Eyepiece |
| Objective | 0.7x-4.5x |
| Magnification | 7x-45x |
| J2 Base: with clip and φ95mm black &white working board |
| vertical Size | 300mm |
| Focus diatance | 100mm |
| Drawtube Size | φ76mm |
| Base size | 285x238mm |
| Optional accessory: |
| Eyepiece: | WF15X, WF20X |
| Auxiliary objectives: | 0.5X, 1.5X, 2X |
| Illumination system: | 8W fluroscenent, 220V/110V |
| SZM0745B-J2 for Binocular; SZM0745T-J2 for Trinocular |
3. Product Photos:
>>
