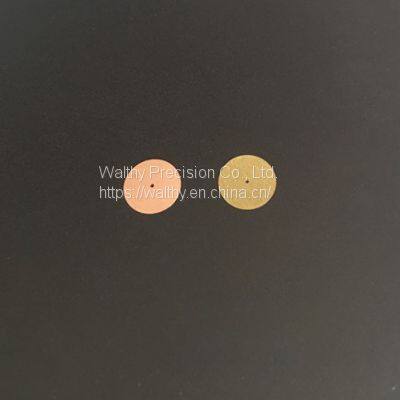

High Power Pinhole Aperture
Slits width ranging from 5-1000um
High Power Precision Pinhole Apertures are used in high energy and power applications. The pinhole apertures are intended to be used in the optical transfer assembly of a system using a powerful laser as a source.A typical example is the aperture within a spatial filter assembly.
Material: Copper
Diameter: 9.5mm or customized
Thickness: 0.01, 0.02, 0.03, 0.05, 0.1mm or customized
Pinhole size: 5-1000um, high power slits are also available.
Centering: +/-0.01mm
Pinhole/Aperture Tolerance: 5% or 10%, depends on the specific dimension
If not listed, please contact us.
We can aso customized slits according to your requirements.
We can fabricate from different substrate materials,diameter,different slit width and length, and different slits configuration.Shape of the substrates can be customized too.
>>
