Fully Automatic Fabric Stiffness Testing Equipment ASTM D1388

Product Description

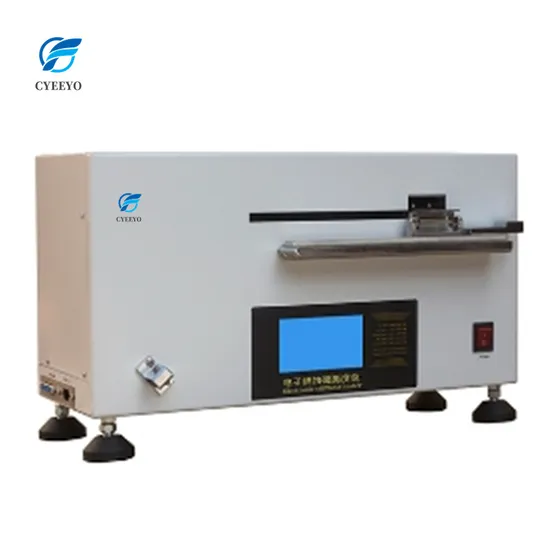

ASTM D1388 Fully Automatic Fabric Stiffness Testing Equipment
Product Description
Application
Used for testing the stiffness of all kinds of woven and knit goods, nonwoven fabrics and coated fabrics, including cotton, wool, silk, linen and chemical fiber, and also of flexible materials such as paper, leather, film, etc.
Standard
ZB WO4003 GB/T18318 ASTM D 1388 IS09073-7 BS En22313
Feature
1, panel key, sensitive operation, not easy to damage.
2, the sample can test the angle:41 degrees, 43.5 degrees, 45 degrees, the angle position is convenient, conforms to the different test standard requirements.
3,using infrared measurement method, the reaction is quick and the data are accurate.
4, step motor control, test speed can be set from 0.1mm/s to 8.0mm/s
5,the transmission device is a ball screw and a linear guide to ensure smooth operation and no swing.
6, the pressure plate depends on the weight of the sample., which is in line with the standard, and it will not cause the deformation of the specimen.
7, the instrument has a printing interface, which can direct the data report directly.
8, three standards and a custom standard sample direction(longitude and latitude) each can test the maximum of 99 sets of data.
9, online working mode: professional analysis software, computer operation, report statistics, print output.
parameters

Working pattern	microcomputer controlled, infrared stealth slant detecting, english liquid crystal display,printing out testing results
online working mode	professional analysis software, computer operation, report statistics ,printout
Testing precision	41.50°, 43° ,45°( adjustable)
Extension elongation	0.5-20.5cm
Testing accuracy	0.01 cm
sample size	2.5×25 cm
Specimen pressing specification	2.5×25 cm
unit selection	cm mm in (arbitrary switching)
Online mode	USB online
Power source	AC220V 50Hz 0.12kW
External dimension	470×290×405mm
Weight	18kg
