Precision Mixing Equipment Featuring Dual Screw Agitator Design

Product Description

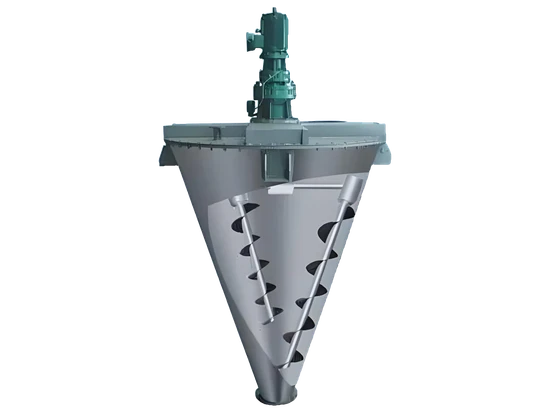

The Double Screw Conical Mixer , an engineering marvel equipped with two asymmetrical spirals on an internal cantilever, is designed to perform dual motions: self-rotation around its own axis and revolution driven by the cantilever around the central axis of the vessel. This ingenious design generates four distinct directional forces. The spirals rotate to lift materials upwards, while the cantilever's slow revolution circulates materials in a smooth, circular motion. The synchronized rotation and revolution draw materials inward, then disperse them in a graceful circular path. The lifted material streams converge at the center, flowing downward to seamlessly fill the void below, creating an efficient and comprehensive circulating flow.
Product Features
1. Cantilever Shaft Structure, where the bearing ends do not contact the material, ensuring purity and preventing contamination.
2. The meticulously small gap between the agitator blades and container wall helps prevent material adhesion .
3. A standardized agitator drive box ensures seamless equipment operation and significantly minimizes maintenance expenses.
4. Easy-Cleaning : Engineered for swift and thorough cleaning between batches, reducing downtime and enhancing operational efficiency.
5. Durable Construction : Constructed with robust materials to ensure long-term reliability, protecting your investment for years to come.
6. Wide Application : Versatile use across various industries, including pharmaceuticals, food processing, chemicals, and cosmetics, showcasing its adaptability.
7. Meets high standards for complete discharge of mixed materials without residue, ensuring product integrity and consistency.
8. Gentle mixing method preserves fragile materials such as crystalline substances, maintaining their integrity and quality.
9. Low-energy mixing is highly suitable for material chemical reactions , improving efficiency and effectiveness.
10. The arched top cover design eliminates sanitary dead corners, making cleaning simpler and more effective.
11. Equipped with a spherical discharge valve for more thorough and stable material discharge .
Technical Parameters

Device Model	DSH-0.3	DSH-0.5	DSH-1	DSH-2	DSH-3	DSH-4	DSH-6	DSH-10	DSH-15	DSH-20	DSH-30
Effective Volume(m³)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12	18
Maximum Batch Capacity(Kg)	200	300	650	1200	1800	2500	3600	600	9000	1200	1800
Revolution/Rotation(r/min)	3.5/12	3.5/12	3/78	3/78	3/78	1.8/65	1.6/65	1/65	1/65	1/44	1/44
Drive Power(kW)	3	3	4	5.5	7.5	11	15	18.5	22	37	45
Equipment Weight(Kg)	500	600	1200	1500	2300	2520	3700	3980	4500	5500	6800
D	φ950	φ1150	φ1580	φ1950	φ2170	φ2280	φ2560	φ3000	φ3450	φ3770	φ4100
H	2060	2350	2840	3500	3760	4360	4800	5900	6680	6700	7500

Product DisplayProduct Structure Application
The Double Cone Mixer is perfectly suited for industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industries
