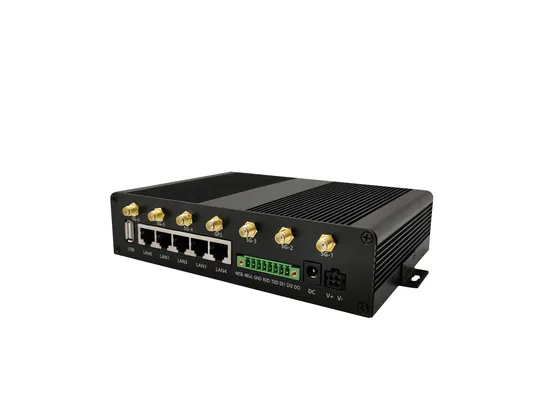

G92-M5 Custom Industrial M2m 5g Module Dual SIM Card 5 Port Gigabit Brandband Router

Product Description

Product Description G92-M5 Custom Industrial M2M 5G Module Dual SIM Card 5 port Gigabit Brandband Router

G92-M5 5G Broadband Router is a kind of internet of things wireless communication router. It uses 5G/LTE-FDD/LTE-TDD/HSPA+ industrial module, to provide convenient and high speed network transmission function.

This series of product uses industrial grade high performance MIPS1004Kc Dual Core communication processor, and embedded real-time operation system as software supporting platform. It provides safe, high speed, stable 5G/4G wireless network, and provides 5 gigabit Ethernet, RS-485/232 and 2.4G/5G WIFI interface.

It can be used in bus Wi-Fi, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc

Features:

Industrial design:
Use high performance industrial wireless module
Use high performance industrial MIPS Dual Core processor
Support low power consumption, include sleep mode, timing online and offline mode, timing switch on and off mode
Use plate metal CRS shell, with good heat dissipation
Power supply:+9V~32V DC(48V DC extendable)
Degree of protection:IP34(can be extended to IP51)

Network characteristic:
Port flow detection
Link real time monitoring
Multiple VPN protocol(PPTP, L2TP, IPSec, GRE, VPN)
Support serial port DTU function
Support dial as required(audio, SMS, data trigger)
Support UPnP

Stability:
Soft and hardware watchdog and multilevel link detection, with the capability of fault automatic diagnosis and automatic recovery, to ensure device working on stable and safe way
Multiple-mechanisms of equipment self-checking, to ensure link unimpeded and alarming
ESD protection for each port, to prevent static shock
Wireless network signal indicator light(NET)

Software:
HOMTECS OS
OEM OS
OpenWRT OS

Remote management:
Remote parameter configuration
Remote parameter backup
Remote reboot and log query
Remote upgrading
Remote online monitoring

Applications:
Support 5G, 4G(FDD and TDD) LTE network, down compatible for 3G network
Support 5x gigabit Ethernet, provide RS-232 / RS-485
Support WIFI(IEEE802.11n / 802.11ac)
Support wire and wireless backup
Support hardware WDT, provide anti-log off mechanism to ensure data terminal online forever
Support PPTP, L2TP, GRE etc. multiple VPN
Support SNMP management protocol
Support Wi-Fi forced AD pushing function
Support multiple functions (DHCP, DDNS, firewall, NAT, DMZ host etc.)
Support ICMP, TCP, UDP, Telnet, FTP, HTTP, HTTPS etc.
Industrial Drawer Dual SIM/UIM Card design, support hot plugging

Extended functions:
Single module dual SIM[optional]
Dual module dual SIM[optional]
GPS/Beidou orientation[optional]
USB internal storage extension, 8GB-256GB[optional]
USB external storage extension, 8GB-256GB[optional]
eMMC Card, max 8G[optional]

Working topology:
