Orchard Lift Man Lift Manufacturer Aerial Work Platform Electric Hydraulic Telescopic Boom Lift

Product Description

Product Description

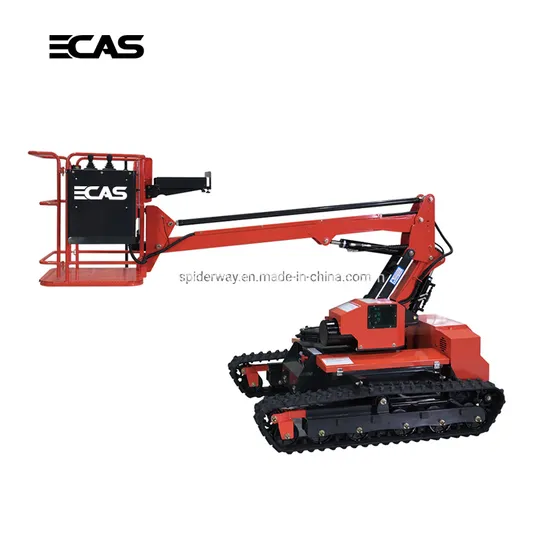

ECAS-100K Desktop Electric Aerial Work Vehicle Agricultural Tracked Transport Scissors Vehicle Boom Lifting For Orchard Picking Fruit

A two-step bending boom-typed vehicle for high-place works
Certified as a new technology by Ministry of Agriculture, Food and Rural Affairs
The best premium model for a boom type
The product have a driving lever anyone could be operate it and you could push the lever for backward,forward ,right face ,left face and right left turn. As the pictures shows ,it also contains a boarding platform lever which is conveniently operate,360° available for infinite rotation .Entry between trees horizontaly woring width 7000mm less contact with fruit trees minimizing damage on fruit trees.
There are also have a smart control system : A manual lever ,you could operte right max 10°,left max10°,front max 10°,back max 10°.
Features and Performance
-One charge, 5-6 days of use.-Wireless remote control (for upper and lower computers)-Motors, chargers (self-produced semi-permanent) improve safety through ground design.-Electronic diagnostics (failure-free, upgraded Desired level controls for safety in harsh environments)
-Certified as a new technology by Ministry of Agriculture,Food and Rural Affairs.
-The best premiun model for a boom type.
Product Parameters
The maximum height available for works 4.8 m
A horizontal access work (Width of works 3m)
Specifaction Detail:

Item	Description
Name of Machine	Aerial Lift Truck
Type	ECAS-100K
Dimension(Length X Width X Height)MM	2730x1440x1320
Max. ascending height (mm)	4800
The height up to the working table upon max. descending (mm)	2900
A horizontal angle of the left, right (˚)	10 / 10
1-step·2-step angle (˚)	1-step 70 degrees, 2-step 110 degrees
Weight of Vehicle (kg)	1020
Max. Load (kg)	150
Running Method	Infinite Track Type (driven by a motor)
A driving motor type	AC Motor 48V, 1.6KW
An illumination type	A lever type (a joystick)
Running Speed (km/h)	0-3.5
Type of Hydraulic Device	Hydraulic Power Pack(The highest oil pressure15MPa)

Major functions of product

1.Applying the first 2-joint in the country
Optimizing a working table and accelerating the working speed.
Minimizing damages on fruit trees

2.An audio system
A radio and a cigar jack
With a multipurpose compartment, it is convenient upon working
3.A communication system
It is easy to provide a quick customer service
by an alarm and a signal check through communication between controllers. 4.An upgraded suspension device
Upgraded to a structure of avoiding leaving the track
minimizing vibration
5.AC motor installed
A semi-permanent life, preventing it from being pushed back upon stopping a back-piece
Upon illumination, it is possible for a fine control.
6.A safety device for emergency stop
It guarantees the safety of a worker
since it stops operation upon emergency by the emergency stop button.
7.Simple and convenient operation.
Considering convenience of an operator / With adoption of an easy-operable
joystick, minimizing confusion upon working
8.A LED light
A self-waterproofing function
A super power-saving LED light

Detailed Photos

Application scenarios
Industry / Agricultue / Household
1.Picking fruits and vegetables
2.House maintenance or construction
3.outdoor warehouse and so on.

Automatic Swarm Expansion Workbench Strength
1.To maximize work efficiency
2.Reduce damage
3.Safety production
4.A horizontal access work Minimizing damages on fruit trees .

Product action: 1.As you can see, this model can help you pick fruit in bulk and complete efficient picking operations. Such wheeled transportation can only be widely supported by most fruit farmers if it has the characteristics of convenient operation, lightness and flexibility, safe running speed and certain overload capacity.
2.At the same time, it can help you prune fruit trees, remove redundant branches, ensure the light of the main pole, so that the branches can grow outward, and supervise the growth status of fruit trees.



Package and Delivery


One charge, 5-6 days of use Wireless remote control (for upper and lower computers) Motors, chargers (self-produced semi-permanent) improve safety through ground design Electronic diagnostic instrument (no fault, upgrade
Exhibition Pictures

Company Profile
Anhui Ekofil Auto Manufacturing Co.,Ltd. We mainly engaged in the production of forklifts, electric handling equipment, golf cart accessories, and is committed to the production and sales of agricultural machinery, with 17 years of industry experience.
FAQ
Q1.Can I have a sample order?A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?A: Small quantity is accepted , but we offer quantity discount.
Q3. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. What does after-sales look like?A: We support 1 year of after-sales service.
Q5. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.
Q6. Is it OK to print my logo on the product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. Does it support changing data?A: Yes.Please send the data you want, and we will send you the video after debugging,and send it to you after confirmation.

---
