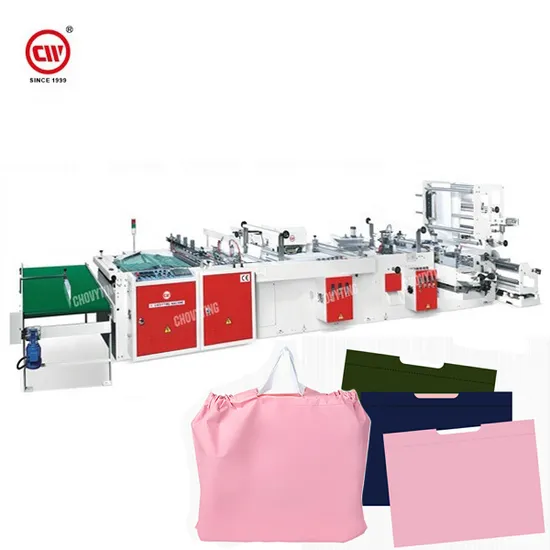

4 Function Automatic LDPE Side Seal Cutting Loop Draw String Handle Shopping Bag Machine Heat Weld Patch Handle Carry Plastic Bag Make Machine

Product Description

Specification Functions and Features:
This is a multifunctional machine combining CHOVYTING CW-800LP fully automatic soft loop handle bag making machine, CW-800SP fully automatic patch handle bag making machine and CW-800PD fully automatic draw string handle bag making machine. It is the best choice for increased capacity and space-saving benefits.
It's user friendly ergonomic design, rigid construction with resistant to vibration
Recipe and production control system with special PLC system,
Easy changeable single and double sealing bar system

FEATURES:
-With soft loop handle bag function
-With patch handle bag function
-With poly draw handle bag function
-With die cut handle bag function
Electric collocate

DETAIL	MODEL	COUNTRY
Air cylinder		SHAKO from TAIWAN
Photocell	KT-5W	SICK-Germany
Servo motor	3kw	Yaskawa-Japan
Main motor	1.5KW	CPG-Taiwan
Inverter of main motor and feeding	1.5KW	Yaskawa-Japan
Inverter of main motor and feeding	0.75kw	Delta from japan
Inverter of conveyor belt and collect table	0.75KW	Delta -taiwan
Human computer interface touch screen	5.7" chromatic	Weinview-Taiwan
Switch and button		IDEC-JAPAN
Solid state relay		Fotek-Taiwan
Imitation transfer	FV-B02	China
Switch power	24V; 100W	TAIWAN

sample bag
Details Images
Common unwind device
1)Unwinding adopt common loading , max diameter of raw rolling material is φ600mm
2)Adopt auto tension control.
3)Unwinding with auto EPC
4)1600mm triangle folding device, which can adjustment
Top-folding continuously sealing device
1)The adjustable heat sealing available after top folding,seals top fold longitudinally and continuously,the width size of bag is
not be limited
2) Inside heating wire sealing, which suitfor full colours of bag.
Patch welding device
1)The patch handle film feeding system is driven pmeumatically.
2)The reel of patch film is fed,cut and welded automatically to the top center position of the PE carrier bag.
Soft loop handle bag device
1)Double layer unwinder
2)90 degree turnabout gear rotary soft loop
3)Special oblique drag style rotary soft loop
4)The whole type steel plate base, and special support bag structure.
Photocell&Pre-heating unit
1)It's integrated with the high-technical computer control sysem to make the position of the printing mark.
2)It's an innovated design for easy operation.
3)It's designde specially with embossed decoration to make the bags without deformation even under high temperatureand high speed
operation.
4)It's heated on the doubled sides and strong for fusing.
5)It's easy to adjust.
Side sealing parts
1)Side sealing knife principal axis transmission belt cylinder lifting and down.
2)Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3)Side sealing knife with concealed style heating tube, temperature steady
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for
train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing
machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as "National Key and New Products" and Pass identification of the provincial new product, honored as" Patent Model
Enterprise" as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.

---
