HD1715D/3 Fincm Boiler Multi Spindle Drilling Machine

Product Description

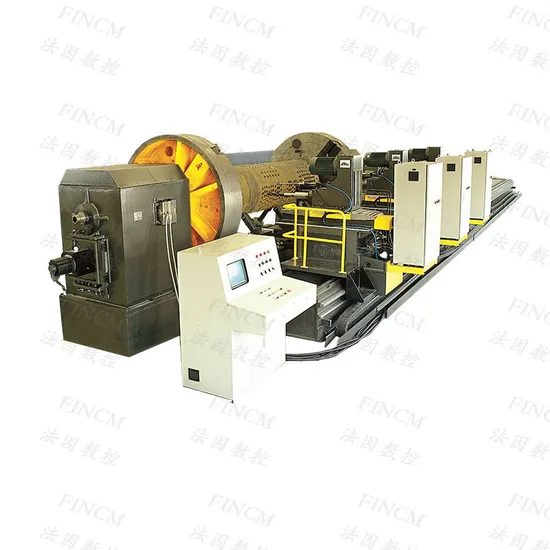

HD1715D/3 FINCM Pressure Vessel CNC Boiler Drum High-Speed Drilling Machine 780mm-1700mm
Product Description
This Machine is mainly used to drill tube holes on header tube which used for boiler industry. It also could use special tools to make welding groove, greatly increase the hole's precision and drilling efficiency.
This machine tool is composed of the following components: bed one, used to carry the head, tail and sliding seat, hydraulic chucks are installed on the head and foot of the bed to clamp the drum workpiece; bed two, used to carry the longitudinal slide Plates, drilling power heads, hydraulic slides, and front clamping devices are used to install drilling devices; in addition, they also include rear support, chip removal and cooling, hydraulic systems, electrical systems, laser alignment devices and other components. Dtails Images:
Main configuration:
1. The power head can realize the automatic control stroke through the hydraulic sliding table, and realize the automatic conversion of fast forward, work forward and fast backward. The three power heads are independent and can realize automatic drilling with high efficiency and good precision.
2. The head of the bed is fixed at one end of the bed, and the AC servo motor achieves numerical control indexing through the reducer and gear reduction to ensure the stability and reliability of the spindle. A three-jaw self-centering hydraulic chuck is installed on the head of the bed, which can easily clamp and loosen the workpiece.
3. A three-jaw self-centering hydraulic chuck is also installed at the end of the bed. By working together with the bed head chuck, it can self-center and clamp the workpiece. After clamping the upper workpiece, it can rotate with the workpiece.
4. The front and rear supports of this machine tool can realize adaptive hydraulic jacking before and after the drum after the drum is clamped by the chuck, which improves the drilling rigidity of the drum.
5. This machine is equipped with a laser cross alignment device, which can be installed in the spindle taper hole of the first drilling power head. It is convenient to align the longitudinal and transverse weld positions on the outer circular surface of the drum and determine the drilling position. .
6. The CAD drawings of the workpiece can be directly input, the system automatically generates the processing program, and the three spindles automatically allocate the processing tasks of all holes. It adopts numerical control control mode and Chinese interface, which is convenient for operation.
Product Parameters

Workpiece size	Drum diameter range	Φ780-Φ1700mm
	Drum length range	2-15m
	Maximum wall thickness	50mm
	Maximum weight of workpiece	15T
	Maximum diameter of borehole	Φ65mm
	Hole spacing accuracy	Distance between adjacent holes:±1.0mm Farthest hole distance:±1.5mm
Power head of drilling spindle	Type	Hydraulic slide, Fast forward work forward fast backward automatic conversion
	Quantity	3
	Spindle taper hole	6
	Spindle speed	80-200r/min
	Spindle stroke	500mm
	spindle feed speed (hydraulic stepless)	10-200mm/min
	Spindle motor power	3x7.5kW
X-axis positioning accuracy		0.2mm
Working temperature of hydraulic oil		≤60ºC
Laser alignment device		Adjust hole group position according to weld position
Workpiece rotation speed		0~2.8r/min
Moving speed of slide		0~10m/min
Power of tail seat drive motor		2.2kW
Servo motor power of slide drive		3X2kW
Cooling pump motor power		450W
Chip conveyor drive motor power		750W
Height between chuck center and ground		About 1570mm
Machine tool overall dimension (L x W x H)		About 22x5x2.5m

List of the KeyOutsourcedComponents:

NO	Name	Brand	Country
1	linear guide rail	HIWIN/PMI	Taiwan China
2	Precision reducer and rack and pinion pair	ATLANTA	Germany
3	Numerical control system	Siemens 808D	Germany
4	servo motor	Siemens	Germany
5	Slide drive servo motor and driver	Siemens	Germany
6	Frequency converter	Siemens	Germany
7	Hydraulic pump	justmark	Taiwan,China
8	Hydraulic valve	ATOS/Justmark	Italy / Taiwan, China
9	Drag chain	Igus	Germany
10	Button, indicator light and other main electrical components	Schneider	France

Note: The above is our fixed supplier. It's subject to be replaced by same quality components of other brand if the above supplier can't supply the components in case of any special matter.
Work Environment:
1).Power supply: 3 phase 4 lines 380±10%V 50±1HZ
2).Compressed air pressure: ≥0.5MPa
3).Temperature: 0-40°C
4).Humidity: ≤75% Other Products
