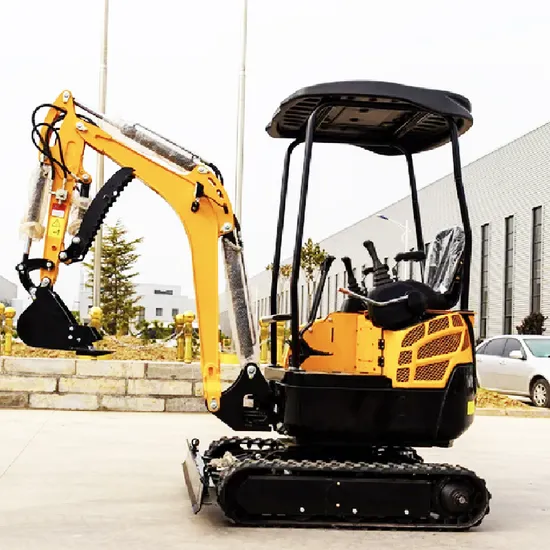

Garden Engineering Mini- Hydraulic Excavator Ht16

Product Description

Description HT16 Series Mini Excavator is a compact and flexible machine that can operate in narrow spaces with excellent performance. It can be widely used in municipal engineering, garden construction and other fields. It is easy to operate and has low maintenance costs.
1) Simple structure and compact design ,easy in installation and maintation.2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5)can install with EPA engine , Euro 5 engine,Control Cabin.
Parameters

Mini Excavator HT16
Emission Standard	Tier 5/ Stage V
Engine	Kubota
Model	D722
Power /Rotation speed	10.2kw(15HP)2500rpm
Number of cylinder	3
Maximum Travel speed	4km/h
Overall dimension (L*W*H)	2450mm*940mm*2150mm
Chassis width	1000mm
Axle base(Track length on ground)	1300mm
Track width	200mm
Min.Ground clearance	380mm
PERFORMANCE PARAMETER
Standard Bucket capacity	0.025m³
Swing speed	9 rpm
Max. Grade ability	35°
Maximum Bucket digging force	18KN
Maximum Arm digging force	11KN
Hydraulic system pressure	18.2Mpa
Machine weight	1350kg
MAIN DEMENSIONS
Maximum Digging height	2640mm
Maximum Dumping height	2100mm
Maximum Digging depth	1800mm
Maximum Vertical digging depth	2230mm
Maximum Digging radius	2350mm
Minimum swing radius	1190mm

---
