Turning and Milling Lathe for Metal Slant Bed Machine with Y Axis

Product Description

Product Description
Technical Parameters

Item					Standard Value	Maximum Value
Processing Capacity	Maximum bar material through-hole diameter			35mm	-
		Maximum granule diameter (disc type)			250mm	300mm
		Maximum processing work piece length			210mm	230mm
		Stainless steel single side cutting amount			2mm	3mm
		Work piece applicable machining accuracy			±0.01mm	-
		Machined surface smooth finish			1.6Ra	-
		Tool rest center height			40mm	-
		Machine tool turning diameter			250mm	-
		Square knife specifications			16mm	-
Travel	X axis effective travel (diameter)			600mm	-
		Z axis effective travel			230mm	-
Y Axis	Y axis type			Side face 4 live tooling	-
		Y axis travel			140mm	-
		Y axis power clamping type			ER16	-
		Y axis maximum speed			2500rpm	4000rpm
		Y axis fast moving speed			15m/min	-
		Maximum drilling and tapping diameter			Medium carbon steel 6mm / Aluminum copper 8mm	-
Feed	X axis fast moving speed			25m/min	30m/min
		Z axis fast moving speed			25m/min	30m/min
		X axis servo power			1.3KW	-
		Z axis servo power			1.3KW	-
Spindle	Maximum spindle speed			3500rpm	4000rpm
		Spindle motor power			3.7KW	-
		Spindle nose model			A2-4
		Hydraulic chuck available dimensions			6 inches	8 inches
Size & Weight	External dimensions			Estimated 1750*1400*1800mm	-
		Overall weight / Net weight			Estimated 1800KGs	-
Machine Tool Specifications and Component Items			Specifications	Standard Configuration	Optional Configuration
Component Specifications	Lead screw	25mm	Taiwan ball grinding precision grade	-
		Guide rail	25mm	Taiwan H-class linear guide rail	-
		Axle bearing	7015 / 7013	XEZ precision bearing or Harbin high speed angular contact bearing
		Spindle motor	3.7KW	3.7KW servo spindle	5.5KW servo spindle
		Feed servo	1.3KW	Yashu & DMC invent joint developed high speed servo	-
		Numerical control system	-	Yashu - KaiTong joint developed system	GSK / Taiwan SYNTEC / Others
Machine Tool Specifications	Lathe bed form	30 degrees	Slanting bed lathe	-
		Base form	-	Heavy duty anti deformation patented base	-
		Clamping method	-	Hydraulic clamping	-
Optional Devices for the Machine	Oil bar feeder / Full automatic feeder

Product Description

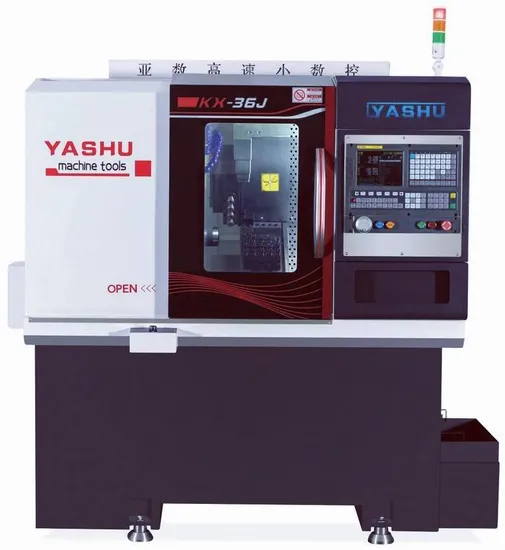

On the basis of the model KX-36J CNC lathe, side face 4 live tooling is installed on the Y axis to achieve the turning and milling composite function of 6-row living tools and 4-side milling. It is widely used in the processing of work pieces that require drilling, tapping, milling grooves, etc. on side face. At the same time, due to the one-time clamping completion overcoming secondary clamping errors, due to the increase in processing time and the merger of processing processes, it is more suitable for one person to manage multiple machines, saving labor, improving automation and processing accuracy. It is suitable for processing bar materials within 35mm and granular materials within 100mm.


Our Product Features


1. Adopting anti deformation patented heavy-duty base, with sufficient weight and support fast speed;
2. Adopting self-developed electronic control system to maximize the efficiency of electromechanical cooperation;
3. Sufficient weight to support vibration resistance during bar processing, improve accuracy and smoothness;
4. Key components adopt high-quality wear-resistant configurations such as Taiwanese brands, full dynamic balance for main spindle installation.
Major Optional Devices
We have a very professional team from product design, R&D, manufacturing, marketing, technical training, and after-sales service, with standardized production technology to ensure the quality of products for customers.

We also have a professional after-sales team, so that every customer can have good product experience and after-sales service after receiving the product.









Company Profile

Foshan Shunde XinLongKe Automation Technology Co., Ltd (NEORONKO) is one of the fastest growing CNC machine manufacturers, located in Shunde District, Foshan City, Guangdong Province, South China since 2015. Our company XinLongKe / NEORONKO is a wholly-owned subsidiary of Guangdong YASHU Intelligent Technology Co., Ltd, who has been listed on China stock market since February 2023 (Stock code: 874026).

Our company team has more than 20 years of experience in the development and production of senior CNC systems and over 40 years of experience in mechanical design and production. So far, our products have acquired quality system certificates such as CE, EAC (for Russia market), NOA, etc. Over the years, we have successively obtained related patented technologies and software copyrights for multiple core components.

We are equipped with advanced production line, equipments and technology, with monthly production capacity more than 400 sets of CNC lathe machines for clients from home and aboard.
Our main products include small CNC lathes, small CNC turning and milling composite machines, small CNC machining centers, CNC cam lathes, and other intelligent CNC industrial master machines that apply independent intellectual property CNC systems. Our products are widely applied in industries such as 3C ( Computers/Communications/Consumer Electronics) / new energy / hardware products / home appliance manufacturing / home decoration building materials / automotive parts / general equipment.

Certificates/Patents/Honors & Awards



Note: Our company XinLongKe / NEORONKO is a wholly-owned subsidiary of Guangdong YASHU Intelligent Technology Co., Ltd, who has been listed on China stock market since February 2023 (Stock code: 874026).
Our Workshop
Client Visiting
Exhibition
Packing & Delivery
FAQ
1. How can I get the price?
Answer: We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. How can I choose the most suitable machines ? Answer: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the product drawings, we will choose the most suitable machines for you.

3. Can I place Metalworking samples orders?
Answer: Yes. Please feel free to contact us.

4. What is your lead time?
Answer: It depends on the order quantity and the season you place the order. Usually we can ship 1-2 machine in 30 working days ; For more than 3 machines, about 35 working days.

5. What is your payment term?
Answer: T/T or ****** Trade Assurance Order Service, other payment term need to be discussed.

6. What is the shipping method?
Answer: Machine order shipped by sea or land transportation ; Metalworking samples by express (EMS/UPS/DHL/TNT/FEDEX and ect). Please confirm with us before placing orders.

7. What is the form of after-sales service?
Answer: a. Warranty is one yearJust for parts. There is no visiting repairing, We offer video support and send the parts for repairing.

-b. Sample making shall be conducted before order if required, i.e. the buyer shall pay the sample making fees first.

-c. Manufacturer shall do the testing and commissioning for the goods before shipment.

-d. After shipment, buyer can go to local maintenance if technical issues occurred (Manufacturer will be responsible for sending spare parts if buyer need. )

-e. Spare parts such as belt, chuck, screw & nuts, hydraulic oil, working lighting, cutting tool, etc are not under warranty scope.

8. How do you make our business long-term and good relationship?
Answer: We keep good quality and competitive price to ensure our customers benefit. Furthermore, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
