1500W 2000W 3000W Handheld Fiber Laser Welding Cleaning Machine for Stainless Steel Carbon Steel Aluminum Copper

Product Description

OVER 18 YEARS MANUFACTURING EXPERIENCE!!!
1kw-3kw laser welding machine hot selling
Product Description

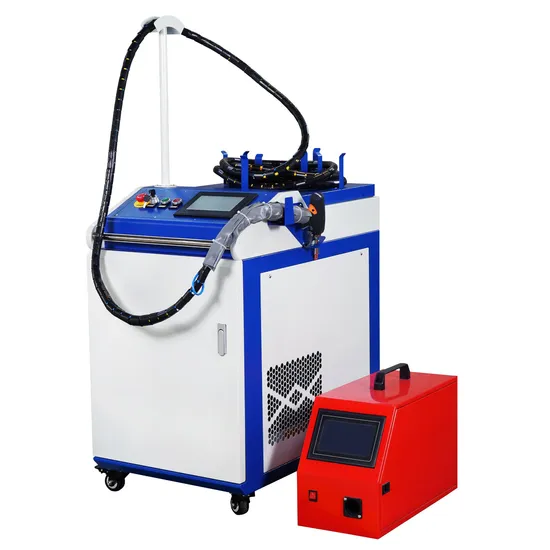

HANDHELD FIBER LASER WELDING MACHINE
Handheld laser welding machine is generally composed of laser, chiller, control software, laser welding head, optical fiber and other components. The advantages are simple structure, fast start-up, flexible welding, strong welding penetration, and can beat welding of various complex angles.
It is suitable for stainless steel, carbon steel, aluminum alloy plates, etc., and also for welding between various materials, and it has optional cleaning and cutting functions for your choice.
Handheld laser welding machine can replace traditional argon arc welding, electric welding and other processes in the field of welding with its advantages of high speed, simple operation and high welding strength.

Product Parameters

Model	GS-HW1500	GS-HW2000	GS-HW3000
Laser power source	1500w	2000w	3000w
Fiber length	10m/15m	10m/15m	10m/15m
Optical fiber core diameter	50um	50um	50um
Fiber wavelength	1080nm	1080nm	1080nm
Red light signal	0.5mw	0.5mw	0.5mw
Welding thickness of iron	4-6mm	5-8mm	8-10mm
Welding thickness of stainless steel	4-6mm	5-8mm	8-10mm
Welding thickness if aluminum	2-3mm	3-4mm	4-8mm
Voltage/frequency	AC220V 50HZ/3P	AC380V 50HZ/3P	AC380V 50HZ/3P
The engine power	7.2KW	12KW	15KW
Weight	240KGS	250KGS	280KGS
Size(cm)	L120*W60*170	L120*W60*170	L130*W68*180
Welding head	SUP20S	SUP20S	SUP20S
Output head interface	QBH	QBH	QBH
Output power range	<2%	<2%	<2%
Operation mode	CW/Modulate	CW/Modulate	CW/Modulate
Type of cooling	water cooling	water cooling	water cooling
Operating temperature	<70ºC	<70ºC	<70ºC

Product Advantages

Simple operation no need training
Provide over 10 kinds of languages to choose, the working status is clear status; the operation panel is concise and easy to understand. The monitor support contact touch, expands the tolerance range of the machined parts and the width of the weld, which solves the disadvantage of small spot size and better weld formation. With multiple safety alarms, it automatically locks light after removing the workpiece, which is safe.
Compare to others machine 1.Product material advantage: the chiller and water pump: cooling capacity is 18L.

2. Advantages of the circuit: The relays are all famous brand, the strong and weak currents on the circuit are separated, the AirTAC brand on the gas line, 99% of the factories will not use the flow alarm valve, in order to reduce the cost,but we use it, in order to improve lifetime of the welding gun.

3. Strong and weak electricity 220v and 15v are separated: to prevent interference and protect the circuit board from being burned(to prevent abnormal parameters and wrong laser light output)
Our wiring diagram VS others wiring diagram

Welding Sample

Application Areas
Mainly used for complex and irregular welding processes in kitchen cabinets, kitchens, stairs, elevators, door and window guardrails, stainless steel home furnishing and other industries.
More Details

Company Profile

FAQ

---
