Basic Info.
Structure
Horizontal Drilling Machine
Automatic Grade
Automatic
Certification
CE, ISO 9001
Max. Board Thickness
60mm
Dust Extracting Quantity
7300m³/H
Vertical Drill Bits
12 PCS
Horizontal Drill Bits
2*4 PCS
Drill Bits Rotation Speed
3400rmp(R/Min)
Spindle Type
ISO 30 / Er32
Face Milling Spindle
3.5kw
Working Table Height
950mm
Working Pressure
0.7-0.8MPa
Specification
5200x2840x2200mm
Product Description
CNC Control System
Adopts Industrial control system with Windows system, the system can import the DXF format date of holes, which will be much more convenient.
Meanwhile the operator can do the bar code scanning to get the processing code.
Horizontal drill bits Adopts the nearest processing principle, can do the continuous drilling process. |
Vertical drill bits In order to avoid the edge breaking, the system will appoint the relevant upper and bottom bits to do the through drilling. Without reversing board, can ensure the working efficiency. |

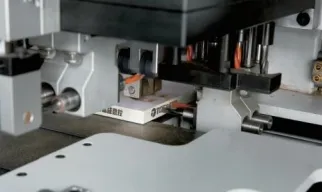

Pneumatic board clamper Adopts double clamper structure, the clamper will do the feeding and positioning automatically according to the NC program. |
Side alignment device Equip with automatic high precision side align device, which can do the positioning according to the different board width. |
Automatic pressing device The pressing device will work automatically according to the NC program, to increase the drilling accuracy. |
1. What's your guarantee? Which type of after-sale service can you provide to us?All the machines, we can offer a 1-year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, FedEx, or air shipment urgently. After-sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer the rapid action to your concerns.2. Which type of payment term can you accept? How could we keep our capital safe?We can accept the T/T and L/C at sight. We have more than 10 years exporting experience, so we know more about the capital safety concern of our customers. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side?The leading time of most common machines will be 10-25 days after collecting the down payment/copy of L/C. Specially designed production will take little bit longer time.4. Can you accept some O.E. M service to us? or any other service could you do for us?We have more than 15 years' experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.
>>
