frp deck frp swimming pool gutter grating rectangular grating
Glass fiber reinforced plastic (FRP) grid and glass fiber reinforced plastic plate, is a kind of glass fiber reinforced material,
unsaturated polyester resin as matrix, through special processing and become a kind of plate material, with lots of blank space FRP gratings can be used as a structural material, used for the floor of the corrosion environment, trench cover, platform, ship deck, stair, catwalks, etc.With corrosion resistance, flame retardant, no magnetic insulation, bright colors, a variety of alternative styles and forms.
FRP Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal,and thurougly wettled out with resin,layer by layer.
Any process such as post applied grit could be bonded after as a secondary opreration.This continuous process produces an intergral,one piece panel,which offers excellent corrosion resistance as well as bi-directional strength.
Specifications(mm)
| a*b(mm)
| weight(kg)
|
38*38*25
| 1220*3660
| 54
|
38*38*30
| 1220*3660
| 70
|
38*38*38
| 1220*36601000*4007
| 8881
|
50*50*50
| 1220*3660
| 98
|
19*19*38*38*30
| 1075*3626
| 72
|
38*38*65
| 1030*4040
| 141
|
40*40*40
| 1010*4040
| 81
|
19*19*38*38*38
| 1220*3660
| 92
|
25*25*50*50*50
| 1220*3660
| 62
|

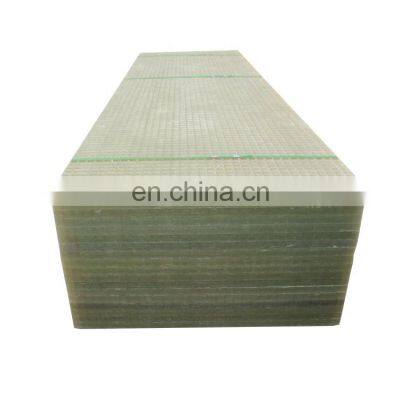

product displays
Application
The grille is interwoven by glass fiber and molded by resin pouring. The grille plate with many regular rectangular and square Spaces is made. It has the mechanical characteristics of bidirectional.It can be widely used in petroleum, chemical electronics,electric power, paper industry, printing and dyeing, electroplating, Marine exploration, sewage treatment and other industries of work platform, equipment platform, drilling platform, walkway, etc.Due to the presence of corrosive liquid, gas, metal corrosion rapidly in these areas, although the anti-corrosion layer and other measures, but for the components of the corrosion is still surprisingly, not only cause bad production environment, and affect production safety, sometimes have to stop production maintenance, in the use of FRP grating as structural materials in these regions can have very good effect, it has a long service life, low cost, safe and reliable, no maintenance, and beautiful and easy, and a series of advantages.In the United States, such products have been widely used for more than 30 years, and the production, use and sale of FRP bars have been standardized, serialized, commercialized and used in large quantities.In the reconstruction of oil fields in the gulf region and the Middle East, experts have proved that the use of FRP grids is the most economical and reasonable material, so it is being widely used.FRP grids are also being used in Asia, Singapore and other areas.
rrosion resistance
It has excellent corrosion resistance to acid, alkali, organic solvents, salts and other gas and liquid media, and has
incomparable advantages in the field of corrosion protection.According to the requirements of practical application, we can choose o-benzene, m-benzene and vinyl resin as matrix materials economically.
2. Resistance to aging
Theoretically, the service life is more than 20 years.
3. Antiflaming
Flame propagation rate (ASTM e-84) of common flame retardant grille shall not exceed 25;Advanced flame retardant vinyl grille flame propagation rate does not exceed 10.The oxygen index is not less than 28(GB 8924).
4. Security
Excellent electrical insulation, no breakdown at 10KV voltage;No electromagne tism, can be used in magnetic sensitive equipment;The
special structure of the grille also has the characteristics of anti-skid and anti-fatigue.
5. Color
Color is optional.Can customize the color according to customer's requirements, improve the environment of the production site.
General grille color: yellow, black, gray, green, blue, red and transparent or translucent and so on.Use a single color in the process, or can be used in combination.
6. Strong designability
Flexible size, convenient cutting, size stability.
Process &Packing
Multiple packing: proved by tests of the compression resistance, throwing. And highly secured.
Plywood case packing: high resistance of burst strength, ring crush strength and tearing strength.
Wooden frame packing: Damp-proved and hight resistance of burst strength and ring crush strength.
Hello friend, if you need please contact us at any time!!
>>
