Non Woven Polyester Sheep Wool Fiber Hard Wadding Oven for Mattress Felt Blanket

Product Description

Product Description
This production line is very popular in the home textile products industry. It is mainly used to produce soft wadding for high-grade household textile materials, such as quilt, mattress sofa and others.
This kind of non woven production line, also called as thermal bonding soft / hard wadding production line, it can work with almost all kinds of chemical fiber or nature fiber (sheep wool, camel hair or others).
Input Material: Chemical Fiber or Nature Fiber (sheep wool and low melting point fiber).

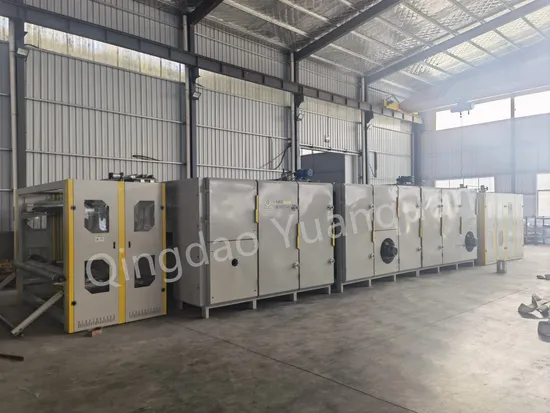

Detailed Photos

Model

Model		30*90-HX
Working Width		3000mm
Length of Main Oven Body		9000 mm
Working Speed		3-15m/min
Weight(Kg)		About 118000
Heating Mode		Natural Gas /Electrical Heating
Burner		6 burner nozzles
Thermal insulation material		The insulation board is 1.2-1.5mm thick cold board filled with aluminum silicate or high-density rock wool with a thickness of 100mm
Sealing Material		High temperature resistant silicone nitrile rubber strip seal
Temperature control range in the oven box		≤ 200ºC
Power	Motor for Driving	1*3kw=3kw (Frequency conversion control)
	Motor for Hot Air Blower	3*7.5kw=22.5kw (Frequency conversion control)
	Motor for Air Cooler	4*5.5kw=22 kw (Frequency conversion control)
	Air Duct Lifting Motor	3*1.1kw=3.3KW

Main Features
1. Heating method: Use 3 burners for heating. Three circulating fans will penetrate the hot air through the air duct and blow it against each other to achieve the maximum hot air effect.
2. The frame is made of 120mm square tubes welded and connected; the structure is stable.
3. The drive mesh roller adopts seamless steel pipe after fine grinding and chrome plating.
4. The curtain entry frames are each 1700mm long, and the rear curtain exit frame is 3000mm long, effectively ensuring deviation correction and stable operation of the motor.
FAQ
(1) Q: Are you a manufacturer or agency?
A: We are a professional manufacturer specialized in producing textile machine for more than 20 years, the production ability is up to 800 sets/ mouth. We have our own International Trade Department, so that we can better understand customer's needs and offer a reasonable price.

(2) Q: Is the price offered changeable?
A: Of course, we offer reasonable price and the price is changeable according to purchasing amount. cchanchangeable according to purchasing amount.

(3) Q: How about the quality?
A:The main subassembly are supplied by large companies from Japan, south Korea or German. Key parts are research and design by ourselves.

(4) Q: How about the after-sale service system?
A: Our engineers available to service overseas to provide professional technical support.

(5) Q: Are you available for on-the-spot invitation?
A: Of course we do welcome to visiting our company and have a face-to-face communication to advance mutual business.

Final Product
