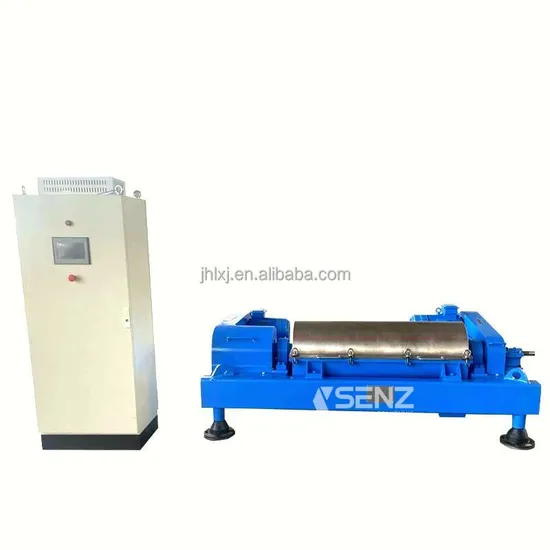

Decanter Centrifuge for Cleaning Wash Water in Pet Bottle Recycling

Product Description

Product Description DECANTER CENTRIFUGE FOR CLEANING WASH WATER IN PET BOTTLE RECYCLING
Shenzhou centrifuge:the mechanical engineering company and supplier of plants and systems, makes an ecologically and economically valuable contribution to the recycling of PET bottles.
SHENZHOU centrifuge supports its customers with centrifuge technology, the shenzhou sludge Decanter pro line. These decanter centrifuges remove contaminants from the wastewater originating out of washing and caustic water circuit in the recycling process. Numerous decanters have already been delivered and installed by plant manufacturers to turnkey PET recycling plants all over the world - including Mexico, North America, Saudi Arabia, Thailand, Japan, New Zealand, Great Britain, Romania, Poland, Portugal, Austria, Germany and the Netherlands.
The requirement of shenzhou decanters will continue to rise as the usage of PET containers around the world is increasing and growing. This and the simultaneously increasing trend towards reuse are leading to a large amount of washing water being produced in the recycling process. This is where the Shenzhou decanters become a valuable asset.
How shenzhou technology works for the environment PET containers are made of polyethylene terephthalate (PET). This is a thermoplastic produced by polycondensation and belongs to the polyester family. One of the raw materials used in its production is petroleum. But how are used PET bottles turned into rain jackets, sports shoes, running shirts, fibers, for example as fleece for functional clothing or cushion filling, filing baskets, binders or the processing of the polyester in hygiene products such as wet wipes, bed fillings, reusable bags, car boot linings, sports and functional garments, right through to "bottle-to-bottle" recycling, which requires very tedious process of cleaning of used PET bottles?
In the recycling process, old PET products are first shredded into small pieces of two to three millimeters. Then hot and cold washing and subsequently caustic water is carried out to remove dirt such as sand, solids, sticker and adhesive residues.
In order that washing water and expensive alkaline solutions do not have to be constantly replaced or the equipment and machines required in the subsequent process do not become clogged, all contamination must be removed from the water circuit during cleaning. Shenzhou sludge Decanters pro with very high G force and torque handling capability are used here in the recycling industry. The washing water cleaned by this process can be fed back into the process cycle. This protects the environment and reduces production costs. Thus, an efficient separation system contributes invaluably in maintaining the water circular economy. The cleaned PET flakes are then available for further use.
Specification

Model	Diameter(mm)	Lenght(mm)	Max speed	L/D ratio	G-force	Capacity(m3/h)	Main motor power(Kw)	Weight(kg)	Dimension (mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	950	2120*1250*680
LW300*900	300	900	4200	3	2964	1-6	11	1160	2150*1300*900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	2450*1300*900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	2470*1350*830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	2750*1350*830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	2730*1600*1080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	3130*1600*1080
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	3320*1700*1130
LW500*2000	500	2000	2800	4	1750	5-35	45	4000	3520*1800*1170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	3885*1350*1600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	4150*1350*1600
LW550*2000	550	2000	2800	4	2414	6-40	55	5700	4570*1380*1600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	4840*1510*1720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	5490*1510*1720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	5200*1600*1800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	3100*1600*1800
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	5820*2000*1300
LW800*3200	800	3200	1800	4	1451	20-120	150	1300	7100*2000*1300

Main technical features 1. Industrial design
Whole machine set design follows concept of advanced industrial design,ensures stability,functionality and safety of whole machine.Also effectively absorbs shear force of dynamic load during operation.
2. Effectively ease resonance during rotating of bi-rotor
When centrifuge works,there is no obvious first-order and two-order resonance regions within designed speed range,meanwhile ,whole vibration intensity of bearing seat is definited within 2mm/s-4mm/s.All of this eliminates extra fatigue damage to components and assembly units from high frequency vibration during operation and sudden vibration when shut down.
3. Thoroughly eliminate phenomenon of liquid ring stalling
Phenomenon of liquid ring stalling happens during heavy duty boot or shutdown process of complete set machine,especially for LW550 and even larger models,It would makes bounce or wild shake,causes extra impact fatigue damage to main bearings,screw bearings and inner parts of rotary bowl.Fortunately ,our engineers have solved this problem thoroughly.
4. Unique technique adopt in main component work-blanks
The manufacturing methods of main component work-blanks are adopt centrifugal casting technique and overall mould-making forging technique,thoroughly avoid risks such as inter-granular corrosion and relaxation of residual stress release in welding joint.
5. Main bearing selection
We use origin bearings of international first-line brands such as S-K-F,F-A-G and so on.
6. Constant temperature detection
All fashioning components and assembly units are detected in constant temperature condition,to make sure of actual processing quality meets the requirements of designed precision accuracy.
7. Inter-change ability
Whole machine physical design and processing technique adopted in critical position,ensure all assembly units and bowls of the same centrifuge model interchangeable.It is not only easy to maintain ,but also greatly improve the reliability and safety of equipment.
8. Simplyand safely in bearing disassemblement
One layer of oil film is injected into contact surfaces between bearing and work-piece by high-
pressure,during disassemblement bearing from the machine.which would fundamentally eliminate friction within different parts.As a result,it would reduce 90% of pulling force and lower the risk of damage to high-precision parts when disassemble bearing.
9.Main bearing lubrication system
There are two kinds of lubrication system for specific product models :
A thin oil lubrication
* Oil pump offers an uninterruptedly power to ensure oil works circularly;
* Jet oil lubrication constantly clean and lubricate bearings and reduce temperature;
* Oil filter system ensure lubricant's cleanliness;
* Oil pressure energy storage system ensure lubrication pump offers an extra oil supply(the pressure is no less than 0.4Mpa) for 5-6 minutes,when power fails accidentally;
* Constant temperature system is available.
B grease lubrication
* Adopt a grease with properties of extreme pressure resistance ,oxidation resistance ,abrasion resistance,water scour
resistance,corrosion-proof and high temperature resistance.
* Optional automatic grease system fills grease on main bearing at designed hours and quantity.
10. Main bearing BH device (patent design)
There are two spare safe bearings at either end of main bearing.When machine works well,they keep certain clearance from bearing inside track to chief axis.When unexpected condition occurs,main bearing got damaged or circle center deviation causing an amplitude of vibration reaches to designed clearance,safe bearings begin to work as main bearing Meanwhile,computer automatic control system would get a feedback of abnormal vibration value on bearing position immediately then activates emergency shutdown and goes a smooth shut down.This system protects machine free from damaging and ensure production safety.
11. GSRL feeding device (potent design)
New design of internal spiral core tube has got following achieves.Without reducing centrifugal acceleration,shorten triangle belt's traction time,reduce disorder of swirling flow and extend separation time.Meanwhile increases inner working pressure of centrifuge,and restrains liquid foaming.
Product Details
Scope of application: Application fields 1. Food
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
Other fields
Pharmaceutical intermediates,salts and manures,etc. Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so onAt the same time,our product with best prices and good quality,welcome to Shenzhou!
Production workshop Screw production1 Screw production2:
High speed dynamic balance detection
Packing & Delivery
FAQ Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process
Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the
procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:12 months.

---
