Product Description
Product Description

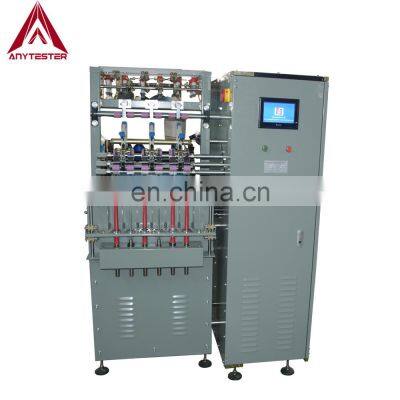

Product DescriptionAT206F Fancy Spinning Machine is used to spin fancy yarns of change in color or structure (such as, slub yarn, variable twist yarn or core yarn) by modifying draft ratio or twist.SpecificationModelAT206FControl modeTouch screen & PLC controlSuitable fiber typeCotton or cotton-type fibersFiber length21~42mmOutput capacity0.25~0.5kg/hLinear density of yarn6~99texSpindle gauge70mmNumber of spindles6, 8,12Ring diameter42mmPressure modePendulum arm for cotton spinningDraft systemThree-roll-up & three-roll downDraft ratio2~50Diameter of drafting rolls25mmDistance between front &middle rolls44~73mmDistance between middle & back rolls47~48mmSpindle length205mmTwist range200~2000T/m, adjustableSpindle speedMaximum 12000rpmPower supplyAC220V 50Hz, single-phaseDetails & Features1. Mini machine, save researching cost and easy to operate and maintain;2. Touch screen & PLC control;3. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen; 4. Independent controlling of core-adding roll and front/middle/back rolls;5. Mini-type design, easy to clean, set and maintain 6. S/Z two twist direction; Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
