Basic Info.
Output Signal Type
Switching Type
Production Process
Injection
Transport Package
Standfard Export Packing
Production Capacity
50000PCS/Year
Product Description

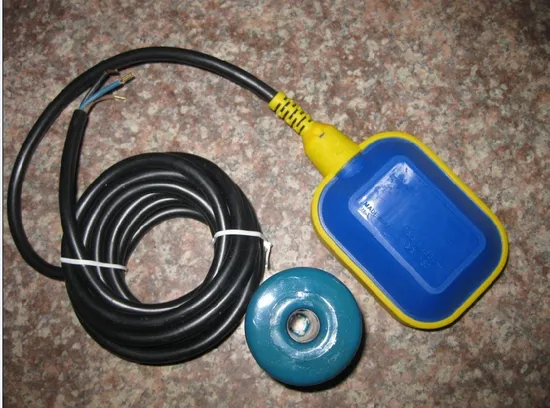

Float Switch/Water Level Regulator/ Liquid Switch
This water pump float switch is widely used to control the liquid level. Our float switch quality is stable, safe, and pass CE approval.Flaot Switch's operation voltage is 220vac, and current can be up to 15A. Applies to branch water,sewage,aid-base solution and oil.
float switch make use of mercury switch as contact component. When liquid lift up to contact float, the float will have variable angles. The switch will have ON or OFF contact signal output when the angle is larger than 10 Degree.
Technical Parameters of cable float switch/water pump, tank float switch
SPECIFICATIONS |
Rated Voltage | 10(8A)250V/AC-10(4A380V/AC) |
Rated Current | 16A(8A)/10A(8A)/10A(4A) |
Working Temperture | 0-70°C |
Mechinacal Endurance | ≥100.000times |
power | 1KW |
Protection Grade | IP68CS |
Specific gravity:0.6
Output: SPDT NO/NC
Temperature rating:-10° to 80°c
Protection Ratings: IP68
Actuation angle:28° (+-) 2°
Pressure: 2 kg/cm2
Installation: Vertical
Switch: Micro switch
Isolation resistance:Min 100 MΩ
Flow Rate:≥100.000 times
Material:PP
Switch currency: +++ ≥50 000switch workings tested by VDE specialisation
Protective connection: T 70U
Working pressure: max.1bar
Circuitbreaking capacity: Directly KW with 250V
Standard Cable Length: 5m ~ 100mm or Accorrding to customer's request
Float: Polypropylene
Cable:polypropylene Jacket
Counter Weight: Polypropylene Sealed Housing
Cable Material: HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2)
1.Simple construction,reliable performance of cable float switch/water pump, tank float switch
The product can output stable and reliable switch control signal of "of making", breaking "without any fault action,so its eliability is very high and antiinter-ference is strong .
2. Sturdy and durable,need not maintain of cable float switch/water pump, tank float switch
The product can be used for a long time after it being installed.Almostno maintence and repairing problem would occur during its operation period.
3. Easy installation method,convenient adjustment method
The liquid level control scope can be adjusted at will with the locating piece moving up and down .Only one screw is needed to secure the signal cable finish installation.
4. Wide application scope,strong generality
The product applies to branch water,sewage acid-base solution of less than medium concentration,oils and situations requiring no pollution(for example food and drinks indusry),diesel oil gasification kitchen range,and automatic fuel feeding.
5. Simple circuit.economial and practical
Operation voltage is 200V,and current can be up to 10A.The applied circuit of the product is simple,so application costis very low .
6. Instructions for installation
May be used for direct level control.In accordance with product electrical specifications.In the case of approved products,the ground wire will always be included and the ground wire sheath will always be yellow/green.In this case ,this two remaining wires are suppied for "high closure"or,specifitic request,"low closure".
7. Installation of counterwelght
Use wires:"Black" and "Blue" with these contacts, the regulator closes when down/opens when up.The wire that is not used must be correctly insulated.
>>
