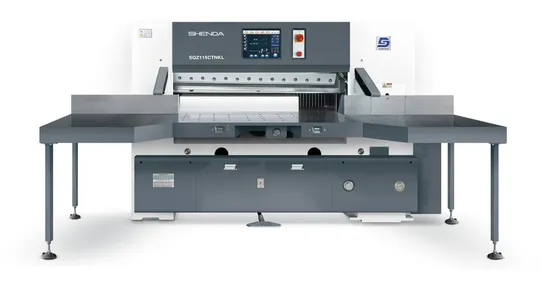

Automatic Hydraulic High Speed Paper Cutter and Paper Cutting Machine (SQZ-115CTN KDL)

Product Description

MAIN SPECIFICATION:

MODEL	SQZ-115CTN
Cutting width(mm)	1150
Max.cutting height(mm) (Without auxiliary panel )	165
Max.cutting length(mm)	1150
Main motor power(kw)	4
Net weight(kg)	3800
Width with sideway(mm)	2650
Without sideway(mm)	2365
Machine lenght	2465
Machine height	1650
Front table length(mm)	735
Table height(mm)	900
Clamp pressure min(dan/bs)	150
Max(dan/bs)	4500
Knife thickness(mm)	13.75
Grinding reserve(mm)	60
Without false clamp(mm)	25
With false clamp(mm)	95
Cutting speed(mm)	45
Voltage(three-phase)(v)	361-339
Packing size(L*W*H)(mm)	2650*1500*2000

THE SYSTEM OF COMPUTER:
1. The displaying panel use 10.4 inch, you can adjust the color by yourself.
2. They have the high quality colors(25600), their storage can reach 170 groups,every group have 250 cut, Its storage time can reach 300,000 hours.
3. The multi-language operating interface, such as Chinese,English,Spanish...
4. It has luminous shortcut key so as to ensure the high stability.

THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB, German MULLER, Japan OMRON.
2. Servo motor is from Japan YASKAWA .
3. Air pump is from TAIWAN GELING


THE PAPER PUSHER CONTROLLED SYSTEM:
1. Roller ball lead screw: TBI
2. Double rail guide way: TBI


THE HYDRAULIC SYSTEM:
1.Adjustable-pressure DOUBLE-hydraulic system (paper cutting and pressing are both controlled by hydraumatic)
2.combined valve from German, ISO approved hydraulic units.

THE SAFETY PROTECTED SYSTEM:
1. Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity protective device.
4. Underlay cutter frame.
5. The closed paper pusher frame.
6. Machine lock,safety bolting,the safety button and light grid.
7.The driving cutting part uses worm.


OTHER EXPLAINTION:
1. The guarantee year is one year expect some consumptive parts, the machine should use correctly.
2. If the buyer need the supplier go for debug or maintain the machine, the buyer should pay the cost of tickets, room and board, traffic.
3. THE DELIVERY TIME: About 30 to 40 days after receipt of the deposit.(If we have no in stock)
4. In every order, the buyer should tell the supplier the voltage and the documents( clear custom )so as to avoid mistake.
6.The buyer should have the equipment to suspend and discharge for the machine.

---
