7 Inch Shell-Less Module Manufacturer Fanless High Resolution Embedded Computer Industrial Tablet PC

Product Description

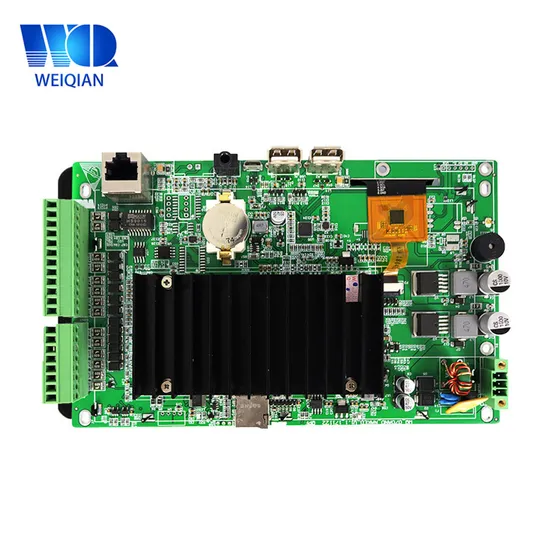

7 inch shell-less module Manufacturer fanless high resolution embedded computer Industrial tablet PC
7 inch shell-less module Manufacturer fanless high resolution embedded computer Industrial tablet PC
1. Parameter

Product model	WAR-070C(R)-SN10
Basic parameters	CPU:Quad-core Cortex®-A9 architecture;Frequency 1.4GHz Memory:1GB DDR3 Flash:8GB
Display screen	Size:7 inch Resolution:1024×600 Wide-temperature type,16000k colors or 24 bit true colors LED backlight:lifetime > 25000 hours
Touch screen	Capacitance /Resistance touch screen
Hardware interface	4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4)(Isolation as optional) 2 channel RS-485 interface(COM1,COM2),multiplexing as RS-232 (COM1,COM2) (Isolation as optional) 1 channel isolated CAN bus interface. (optional) 1 channel USB Device interface,support ADB connect to PC to exchange data and debug application. 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot, support mini SD /MMC card. 1 channel 3.5mm earphone output interface. 1 channel speaker interface (built-in power amplifier 8Ω2w )(optional) 1 channel 4G module . (optional) 1 channel WIFI interface .(optional) 1 channel DC12V~24V,industrial power solution,higher reliability.
Attention	When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS	Android 4.4.2/Android 5.1
Defend degree	/
Working environment	power:DC 12V-24V (24V as recommendation) working temperature:-10~60ºC storage temperature:-20~80ºC working humidity:10~90%RH
Size	No shell Size:188×117×41 (mm)
Application area	industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment.
Software support	Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc . Easy change the user-defined splash screen.

2.Interface definition

1. COM1-TX0 of RS-232	2. COM1-RX0 of RS-232
3. GND	4. COM2-TX2 of RS-232
5. COM2-RX2 of RS-232	6. GND
7. COM3-TX3 of RS-232	8. COM3-RX3 of RS-232
9. GND	10. COM4-TX4 of RS-232
11. COM4-RX4 of RS-232	12. GND

1. CANL	2. CANH
3. GND	4. COM2-485B
5.COM2-485A	6. GND
7. COM1-485B	8. COM1-485A

2.1 RS-232 interface
4 channel RS-232 serial port,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4.
2.2 RS-485 interface
The corresponding port in Android system is COM1,COM2.
2.3 CAN Bus interface
The function of Can-bus interface is optional .
2.4 Power interface
3.Exterior size
Exterior size:188x117x41(mm)
Transport and Packing process
Express (UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-5 working days
100PCS or More orders: 10-20 working days
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.
FAQ
Q: whether your industrial panel pc support the OEM / ODM?
A: Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.

Q: Where is your panel pc / Tablet pc apply?
A: Restaruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .

Q: What is the main size for your panel pc and industrial monitor?
A: 7",8", 10.1", 10.4",11.6", 12", 13.3" 15", 15.6", 17" 19" 21.5" 22" and wide screen the same zise. We also support the customized.

Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .
Q: What kind of inspection you can provide?
A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee !

---
