Welcome to visit

Grand Feeding Broiler Around The World

Negotiable 10 Sets (MOQ)

Basic Info.

Model NO.
deep litter system
Application
Chicken
Power Source
Electric
Heating and Ventilation Equipment Type
Fans and Cooling Pad
Computerized
Computerized
Certification
QS, ISO9001:2008, CE
Condition
New
Name
Farming Broiler Feeding Tray Flood Poultry Feed
Material
Copolymerization PP
Chicken Feeder
Plasson-Bigdtuchman-Valco Ground Pan Feeder
Capacity
8-12 Chicken
Pan Distance
4 Pans/3m
Feature
Save Breeding Cost
Transport Package
Standard
Specification
Standard
Trademark
POUL TECH
Origin
Henan China
HS Code
8436291000
Production Capacity
50000pieces/Year

Product Description

Deep litter system
Automatic deep litter system for broiler chicken with automatic system.
Driving moter power 1.5Kw voltage:380V
Feed box Material : hot dip galvanized steel,
Galvanizing thickness: 180g/m2
Delivery system Feed is delivered by disc-chain in the pipe
1.delivery chain :reinforced nylon disc-chain long lasting and anti-fracture ;
2.Delivery pipe: 4 hole/3m, diameter φ45mm, hot galvanized steel , galvanizing thickness: 220g/m2 ;
3.Max delivery capacity :1 .3T/h, max distance 300m (4 corner)

Breeder feed pan
1.four feed pan/3m ,interval 750mm between two feed pans ;
2.Feed capacity: 12.5 birds/pan ;
3.With slide shutter-off ,could shut any feed pan freely ;
4.Pan bottom dish hanging with grill could be disassembled easily

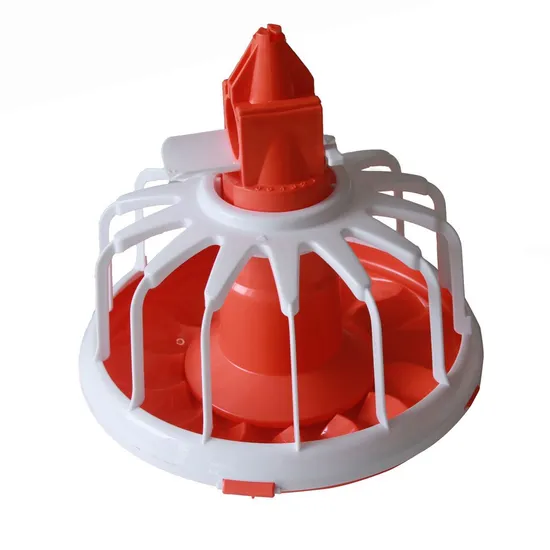

Male feed pan
a. Diameter: 360mm
b. Material: PP (polypropylene)
c.Feeding capacity:6 ~ 8male birds/pan
d .9-grill design: enough eating space with more cock
