Transformation From Waste to High-Value Carbon Products Nut Shell Carbonization Machine

Product Description

Product Description

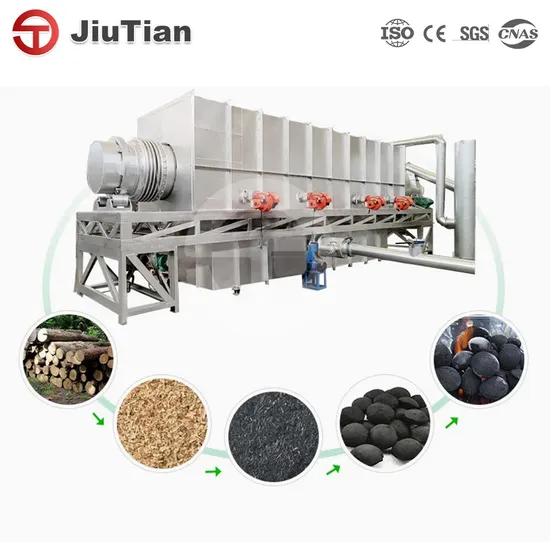

The equipment of the nut shell carbonization furnace production line includes bark gasifier, smoke processor, combustible gas purifier, combustible gas condenser and induced draft fan and other components. Nut shell carbonization machine is a new type of high-efficiency, energy-saving and environment-friendly carbonization equipment. This equipment is suitable for carbonization of fine powders such as sawdust, rice husk, bark, sludge, garbage, etc. It is not easy to be used for carbonization of larger materials. The advanced carbonization technology means that the whole process does not produce harmful gases and does not pollute the environment.
This nut shell carbonization machine is not only suitable for various fruit shells, This machine is suitable for all kinds of powder particles biomass carbonization forestry agriculture. Such as sawdust, wood chip, bagasse, coffee grounds, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell shell shell, peanut shell, rice husk, cotton stalk, straw, etc.
Working principle
The working principle of nut shell biomass carbonization machine (also called nut shell carbonization furnace) mainly involves the process of converting nut shells and other biomass raw materials into carbonized products through a series of process steps.
First ignited the biomass in the gasifier, the flue gas produced by burning after spraying, cooling, purification process, the combustible gas into pure (carbon monoxide, methane, ethane, etc.), as the early stage of the carbonization of heat source, to early warming carbonizer, began after feeding coking reach the set temperature.carbonation process of flue gas by spraying, cooling, purification process, make the secondary on the combustible gas generated during the combustion.According to such methods of circulation, the use of autologous flue gas combustion self,in order to achieve the effect of energy saving.And the process of flue gas after purification treatment, production environment without flue gas emissions, environmental protection, and reached to the standards for waste gas emptying.
Features and Advantages
1. Strong material adaptability. Biomass with a moisture content of less than 20% and a particle size of less than 30 mm can be carbonized;
2. The quality of carbon products is good, and the carbonization rate is high. Carbon products can be used not only as fuel carbon, but also as raw materials for agricultural carbon, metallurgical carbon and activated carbon;
3. Strong carbonization depth control ability. The residual volatile matter of charcoal products is 10-25%, which can be controlled on demand;
4. The equipment is safe and environmentally friendly, stable in operation and long in service life. Choose a large number of new materials and new processes, adopt patented technology design, precision production, after a lot of practical tests, every detail is perfect, to ensure the quality of each set of equipment.
Product Parameters

Model	Inner layer diameter(mm)	Outer layer diameter(mm)	The drum length(m)	Carbon capacity(kg/h)	Dimension(m)
JTTJ1410/2	800	1400	10	300-500	10.0*2.1*2.8
JTTJ1610/2	1000	1600	10	500-700	10.0*2.3*3.0
JTTJ1810/2	1200	1800	10	700-1000	10.0*2.6*3.2
JTTJ2010/2	1400	2000	10	1100-1300	10.0*2.9*3.9
JTTJ2312/2	1600	2300	12	1500-2000	12.0*3.2*4.2
JTTJ2512/2	1800	2500	12	2200-2500	12.0*3.5*4.5
JTTJ2912/2	2200	2900	12	2700-3000	12.0*3.9*4.9
JTTJ3212/2	2500	3200	12	3300-3800	12.0*4.2*5.3
JTTJ3612/2	2900	3600	12	4000-4500	12.0*4.6*5.8

Company Profile
Founded in 2003, Zhengzhou Jiutian is an enterprise with 200 employees committed to enhancing clients productively, profitability, and safety.
Jiutian Machinery products include continuous charcoal making machine, horizontal carbonization furnace, vertical carbonization stove, activated carbon plant, briquette machine, drying machine, etc.
Certifications
Shipping
FAQ
Q1. What is the MOQ?
1 set.
Q2. Can I have different models at different prices?
Yes. There are different models according to different raw materials and different capacities.
Q3: Which areas do you serve?
We have a very big market in China local market, at the same time, we have exported our carbonization furnace all over the world, including Europe, Africa, Middle-East, Asia, North America South America and so on, total more than 30 countries in the world.
Q4. How long is the quality guarantee?
One year.
Q4. Is technical support provided?
yes

---
