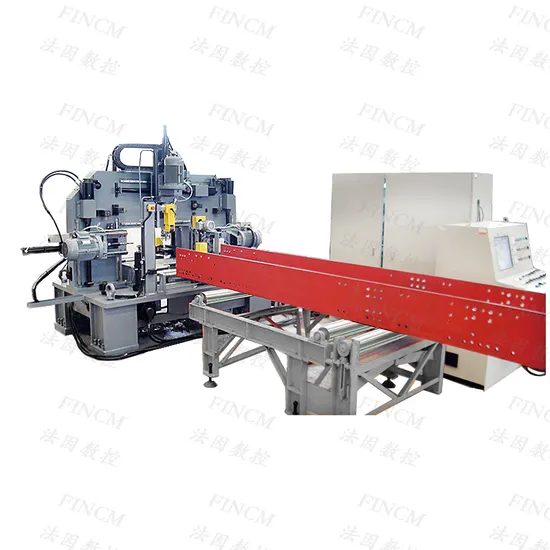

SWZ400/9 FINCM Steel Structure Fabrication CNC H Beam Drilling Machine
The SWZ400/9 three-dimensional CNC drilling machine production line is composed of SWZ400/9 three-dimensional CNC drilling machine, feeding trolley and material channel. It can be widely used in steel structure industries such as construction, bridges, power station boilers, three-dimensional garages, offshore oil well platforms, tower masts, etc.
This machine tool is mainly composed of several main parts such as a bed, a CNC sliding table (3), a self-controlled stroke drilling power head (3), a clamping mechanism, a detection device, a cooling system, a chip box, and a safety net.
Equipment advantages:
1.The three drilling power heads can work independently or simultaneously.
2.The spindle speed of each drilling power head is controlled by frequency converter and stepless adjusted; the feed speed is stepless adjusted by speed regulating valve, which can be adjusted rapidly in a large range according to the material of workpiece and diameter of drilling hole.
3.The bed is a frame structure welded by high-quality steel. The steel pipe is strengthened in the place where the force is large. After the welding is completed, the heat aging treatment is performed. These all improve the stability of the bed. Thereby ensuring the accuracy of the entire machine tool.
4.This machine is equipped with workpiece width detection and web height detection devices, which can automatically compensate for machining errors caused by irregular workpiece outlines and improve machining accuracy.
5.The machine tool is equipped with an aerosol cooling system, which has the advantages of less coolant consumption, cost savings and reduced drill bit wear. Detailed Photos

Main Technical Specifications:

Parameter name				Unit	Parameter value	Remark
Scope of work piece	Section steel			mm	140x75~300x400
	Thickness			mm	≤80
	Length			m	15m	Configure according to customer demand
	Short material limit			mm	Automatic processing≥3000
					Manual processing:690~3000
principal axis	Quantity				3
	drill hole Range		Fixed side, mobile side	mm	¢12.5~¢30
			Intermediate unit	mm	¢12.5~¢40
	Spindle speed			r/min	180~560
	Change the card head quickly			/	Morse taper hole 3#,,4#	Can change to 2#
	Axial stroke		Fixed side, mobile side	mm	140
			Intermediate unit	mm	325
Cooling mode	Compressed air + cutting fluid			/	/
	Air pressure			MPa	≥0.5
Machining accuracy	Error of adjacent hole spacing in hole group			mm	≤0.5
	Feeding error within 10 m length			mm	≤1
electric machinery power	Intermediate unit X-axis servo motor			kW	1.0
	Z-axis servo motor of intermediate unit			kW	1.5
	Fixed side and mobile side X-axis servo motor			kW	1.0x2
	Fixed side and mobile side Y-axis servo motor			kW	1.5x2
	Moving carriage three phase asynchronous motor			kW	0.55
	Over dimension			mm	About 4300×1400×2800
Main Machine Weight				kg	About 4300

Working temperature: 0ºC~40ºC
power supply:3 phase 4 wire;
voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:

NO.	Name	Brand	Country
1	Linear guide rail	HIWIN/CSK	Taiwan (China)
2	Electromagnetic hydraulic valve	ATOS/YUKEN	Italy/Japan
3	Hydraulic pump	Just mark	Taiwan (China)
4	servo motor	Panasonics	Japan
5	Servo driver	Panasonics	Japan
6	PLC	MITSUBISHI	Japan
7	Spray cooling pump	BIJUR	USA
8	Flexible extension nozzle	BIJUR	USA
9	Pneumatic solenoid valve	AIRTAC	Taiwan (China)
10	Centralized lubrication	HERG/BIJUR	Japan/USA
11	computer	Lenovo	China

Note: The above is our fixed supplier. It's subjet to be replaced b other brand components with the same quality level if the above supplier can not supply the components in case of any special reason
