Wayne CNC Dual Spindle Power Turret Turn Mill Lathe Machine

Product Description

Product Description
Introducing our Precision Metal Cutting Horizontal Lathe with 210mm Swing for Automatic Use - a masterpiece of engineering from Liaocheng Wayne New Materials Co., Ltd. This remarkable series of machines is designed with a sleek, compact build that not only enhances its aesthetic appeal but also ensures it fits seamlessly into any workspace. The robust spindle is a powerhouse, generating substantial torque to handle even the most demanding tasks with ease. Its unparalleled rigidity guarantees stability and reliability, maintaining its exceptional accuracy over prolonged periods of operation. With high positional precision and efficient chip evacuation, this machine is your perfect partner for high-speed, high-precision machining applications. Whether it's the automatic processing of inner and outer cylindrical surfaces, cone surfaces, circular arc surfaces, or end faces, this lathe excels with agility and precision. Furthermore, its capacity to efficiently handle single and multiple threads across metric, inch, and various other standards showcases its versatility and efficiency, making it an indispensable tool in your manufacturing arsenal.
Detailed Photos
Product Parameters

SPECIFICATIONS	UNIT	CK6140
Max swingoverbed	mm	∅400
Max swingover cross slide	mm	∅180
Max processing length	mm	750/1000/1500
X/Zaxi;tra-1	mm	x:240 z:750/1000/1500
Spindle speed	rpm	L:70-560 H:200-1600
Spindle nose		C6
Spindle bore	mm	∅52
Spindle taper		MT6
Spindle motor	kw	5.5
Chuck size	mm	∅200
Ball screw dia and pitch		2505/4006
X/Zaxis feed motor torque	N.m	5/7.5
X/Zaxis rapid traverse	m/min	X:6 Z:8
X/Zaxis repeatabilty	mm	±0.005
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ral.6
Tailstock sleeve dia	mm	∅65
Quill traverse	mm	140
Quill taper		MT4

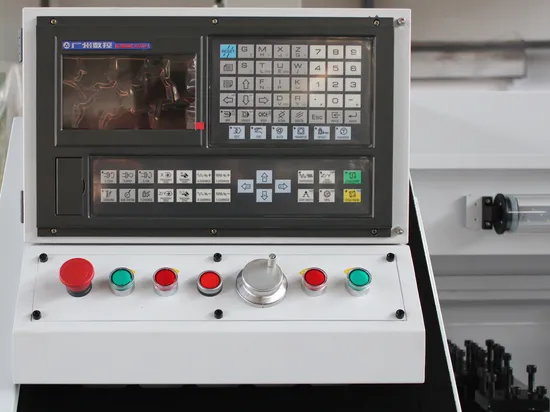

System		GSK
Tool postform		Electric six station
Voltage	v	3 PHASE 380V 50HZ
Machine dimension (L*W*H)	mm	2300*1500*1700
Gross weight	kg	1900

Product description:
1. Experience the synergy of sleek sheet metal design aesthetics and user-friendly operation, delivering an unparalleled user experience.
2. Crafted with meticulous attention, the bed frame utilizes premium resin sand and undergoes aging rail super audio quenching to deliver outstanding wear resistance.
3. An advanced rail laminating process not only enhances wear resistance but also significantly prolongs the lifespan of the equipment.
4. Engineered with precision, the high-precision rolling screw vice transmission features innovative three-point positioning double support, ensuring unmatched accuracy.
5. The centralized lubrication unit is expertly designed to provide comprehensive lubrication to all moving parts, dramatically extending the equipment's lifespan.
6. Versatile clamping options are available to accommodate a wide variety of operational requirements, offering flexibility like never before.
Fit Range
1. Masterfully capable of executing precise turning, whether it be cylindrical, taper, arc, externality, cut-through, boring, reaming, or crafting diverse screw threads.
2. Perfect for a spectrum of industries, including automotive and mobile parts, valves, electric tools, and hardware meters, all meticulously ensuring surface roughness adheres to the highest standards.
Packaging & Shipping

Company Profile
Liaocheng Wayne New Materials Co., Ltd. stands at the pinnacle of innovation in the realm of CNC Router and Laser Engraving & Cutting technology. Situated in the bustling and innovative hub of Liaocheng city, Shandong, our extensive product line showcases a magnificent collection of machinery. From Large-scale ATC Woodworking Router Machines and advanced 5-axis CNC Router Machines to reliable CNC Advertising Router Machines and precise CNC Marble Engraving Machines, our offerings are diverse and cutting-edge. Our catalog also includes efficient CNC Plasma Cutting Machines, cutting-edge CNC Metal Mold Machines, versatile CNC Lathe Machines, high-precision Swiss Type Lathe Machines, powerful Fiber Laser Cutting Machines, versatile CO2 Laser Cutting & Engraving Machines, state-of-the-art Laser Marking Machines, and highly effective Laser Welding Machines, among others. By leveraging the latest technological advancements and maintaining uncompromising quality standards, we are dedicated to forging the global brand 'Wayne.' Our products, a testament to superior craftsmanship, have made a significant impact in over 100 countries, including prominent markets like the United States, Germany, Indonesia, Canada, Australia, Russia, and extensively throughout Southeast Asia. This impressive worldwide presence solidifies our position as a true international leader in our domain.Our core mission revolves around providing unrivaled service excellence to our esteemed clientele. Whether you are in search of off-the-shelf solutions or bespoke configurations, we excel in delivering perfectly tailored solutions to fulfill your distinct needs. Every component of our state-of-the-art machinery is meticulously sourced from globally acclaimed suppliers and pioneers in machine control, ensuring exceptional performance and unmatched reliability. Our machines flawlessly integrate into a diverse array of industries and artistic pursuits, including woodwork, intricate metal and stonework, aluminum fabrication, boat building, shop fitting, and precision mold making. Supported by a dedicated and highly skilled after-sales service department, an adept sales team, and stringent quality assurance protocols, you can make your purchase with absolute confidence. We warmly invite customers and potential business partners worldwide to engage in cooperative ventures with us, paving the path for mutual success. By offering exceptional service, impeccable quality, and competitive prices, Wayne stands as your ultimate choice. We eagerly anticipate collaborating with you to generate greater value. Reach out with your requirements, and let's engage in a rewarding conversation. We patiently await your contact, ready to embark on a promising journey together.
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory. Wayne machinery is a manufacture of cnc lathe cutting machine and laser cutting machine ,In fact,we do export for more than 15 years , our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.
Q: How long is your delivery time?
A: Generally it is 15-30 days ,it is according to different machine model and different configuration and order quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Also we would like to do LC at sight.
Q: Where is your factory located ? How can I visit there ?
A: We are located in Liaocheng City. Which is only 1 hours' away from Jinan by train.
Also you can fly to JINAN Airport, it is only 1 hour and we will pick up you.

---
