ATR1280 HD Online Thermal Camera

Product Details

Product Description

Product Description

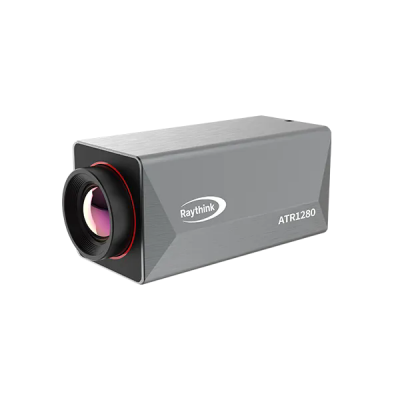

ATR1280 HD Online Thermal Camera
ATR1280 is a high-performance and high-precision electrically adjustable temperature measurement thermal imager that outputs infrared images with a resolution of 1280 x 1024.
It adopts an electric focusing scheme and supports the GigE protocol, ensuring stable operation and fast response.
Equipped with professional application software, it is an ideal choice for fields such as education, scientific research, and industrial automation.
FeatureHigh-Definition Images And Precise Temperature Measurement
Using an infrared detector with a resolution of up to 1280×1024, ATR1280 provides users with clearer and more detailed infrared thermal images.
High-Speed Data Transmission
Equipped with a Gigabit network interface that supports the GigE protocol, the device enables real-time transmission of temperature data, for remote monitoring and data analysis in industrial scenarios.
Wide Measurement Range And Temperature Compensation Algorithm
With a wide measurement range from -20°C to +550°C, ATR1280 is suitable for industrial scenarios with various high-temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.
SpecificationThermal Imaging ParametersTemperature Measurement FunctionImage and VideoSystem InterfaceDevice Specifications

DetectorUncooled VOx detectorInfrared Resolution1280×1024Pixel pitch12μmSpectral Band8μm~14μmThermal Sensitivity (NETD)
Measurement Range-20℃~+150℃,0℃~550℃Measurement Accuracy±2°C or ±2% of readings, whichever is greater.Temperature Measurement CorrectionReflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distanceMeasurement ToolSettings of measurement rules for a total of 12 points, lines, and areas Supports isotherm settingTemperature Width StretchSupport temperature width stretch
Frame Rate15HzPalettes18 color palettes including black-hot, white-hot, iron red, rainbow, etc.Thermal Image CaptureSupport thermal image capture and secondary analysisMirror ImageHorizontal/Vertical/DiagonalDigital Zoom1.0~8.0 continuous zoom (step size: 0.1)
Communication interfaceRJ45, supporting Gigabit network.Network ProtocolTCP, UDP, ICMP, DHCPInterface ProtocolGigE Vision
Operating Temperature-20℃~+60℃Power supply mode6~16V DCTypical Power Consumption4.5WDimensions70mm×63mm×143mm (19mm lens)WeightApprox. 725g (19mm lens)

Application Scenarios

Automatization

Electronic Circuit Inspection

Machine Vision

Power Monitoring
