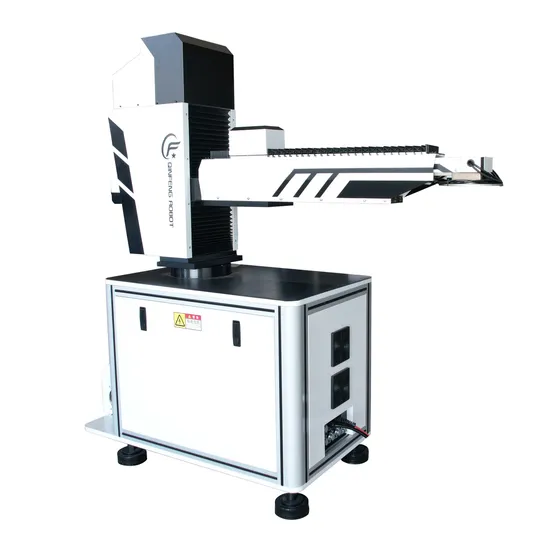

High-Performance Robotic Arm for Punch Press Automation Tasks

Product Description

It is suitable for the stamping site of electronic products, home appliance parts and mechanical parts.
The unique invention patent of "a large-scale workpiece stamping manipulator" and the utility model patent of "an arm structure for large-scale workpiece stamping manipulator", effectively solve the efficient and stable pick-and-place of large-scale workpieces within 20 kg.
The self-developed robot control algorithm is adopted to realize the linkage control of each axis. According to the feeding characteristics of the stamping industry, the optimal motion track is automatically generated, and the action is stable and efficient, with an efficiency of 10-20 times per minute. (According to the manipulator model and production environment )
With high flexibility, it can realize various stamping actions in all directions and from multiple angles: flipping, scrapping (before discharging), side hanging, oblique placing or stacking, etc. It is also suitable for continuous mold, single machine multi-mode and other mold processes.
Each axis adopts a high-performance absolute servo system, the circuit is optimized, and the overall performance is excellent. At the same time, it has a power-off position memory function to avoid the trouble of returning to the origin.

Adopt open programmable technology, support motion track editing, simple operation, flexible control, can store a variety of product information with strong interchangeability. One-time setting can be used for a long time.
It is suitable for all types of stamping equipment on the market: gear punch press, pneumatic punch press, hydraulic press, and can be connected at will regardless of the tonnage or the height of the machine to realize the free combination and connection of equipment.

Using well-known brands at home and abroad and high-precision core accessories, the quality is stable and reliable, the positioning error is controlled at ±0.1mm, the failure rate is lower than 1‰, and the service life is more than 10 years (Depending on the production environment and maintenance conditions)
The product is highly standardized and only need to customize the gripper (suction cup type, pneumatic type, magnetic suction type, etc.). It's easy to install, and can be mass-produced within three days.

Model		QF-5045-S3-3
Parameter		Unit	Index
Voltage		V	220±10%
Power frequency		Hz	50/60
Power		KW	3.5
Working temperature		ºC	-20~45
Relative humidity of working environment		%	20~80
Axis	Swing axis	degree	±170
	Up and down axis	mm	0~340 (min. grabbing surface 1000)
	Front and rear axis	mm	1120~1650
	Overturn axis	degree	±180 (not applicable for 4-axis)
	Revise axis	degree	±360
Productivity (as per size of product)		Pcs/h	800~1000 (13-17 times/minute)
Feeder accuracy		mm	±0.2
Max. working radius		mm	1500
Payload		kg	≤3
Robot size(L*W*H)		mm	1100*600*1750 (H is variable)
Robot weight		kg	≈350

Hunan Qinfeng Robot Corporation Limited is a leading manufacturer and provider of comprehensivestamping automation solutions, dedicated to enhancing manufacturing efficiency and precision. Ourextensive product lineincludes:
Stamping Manipulators and Robots: Advanced systems designed to automate and streamline stampingprocesses.
3-in-1 Decoiler-Straightener-Feeders: Integrated machines that combine decoiling, straightening, andfeedingfunctions to optimize material handling.*Destackers: Equipment engineered to separate and feed individual sheets from a stack, ensuring smoothoperation.
Transfer Manipulators: including 3D. independent. and one-bar transfer manipulators, these devicesfacilitate the precise movement of workpieces between stations.Tooling Solutions: Offering progressive dies and single molds tailored to meet diverse stampingrequirements.
Stamped Products: High-quality stamped components produced to exacting standards.Our commitment to innovation and quality ensures that our clients receive state-of-the-art equipment andservices,tailored to their specific needs.
Dedicated to stamping automation this small industry for 15 years, we are now leading the industry nowWith the philosophy of "honest operation, excellent quality, developing and innovation, mutual benefit andwin-win",we are yourideal partnerin stamping automation.The orderis not the end, but the beginning of the service.
Q1: Who are you?
We are Hunan Qinfeng Robot Corporation Limited
Q2: Are you a factory or trading company?
We are a factory.
03: What service do you provide and what are your products?
We provide one-stop solution to stamping automation. Except punch press, wemake all equipment including stamping manipulators, stamping robots, 3 in 1decoiler straightener feeder, destacker,3D transfer manipulator,independenttransfer manipulator, one bar transfer manipulator, progressive die, singlemold and stamped products in our own factory.
Q4: Where is your factory located? How can l visit your factory?
We are located in Huarong, Yueyang, Hunan. You can take high speed train toYueyang station or fly to Yueyang airport. We can pick you up from Yueyangstation or airport. lt's about 1 hour by car from our factory to Yueyang stationor airport.
05:ls your machinery standard or customized?
Both. Most machinery are standard models. lf standard models can't meet yourpersonal needs,we can customize as per your personal needs.
06: How does your factory's quality system work?
QUALITY IS PRIORITY. We check all machines parts before installation and allmachines will be tested before shipment.
07: How long is the warranty of the machine?
The warranty is one year. With good maintenance, the machines can be used
more than 10 years.
Q8: Do you have after sales service?
Yes, we have some overseas service partners that can provide on-siteafter-sales service.In those countries we haven't had service team, we arehappy to provide support through mail, visual phone and etc.
09:ls it possible to be a foreign agent and distributor?
Yes. Welcome to be our agent or distributor if you have sales and after-salesservice team in the stampingindustry.

---
