Pulp Machine Inflow Pressure Screen for Waste Paper Recycling Production Line

Product Description

Pulp Machine Inflow Pressure Screen for waste paper recycling production line
About Greatland
GLM is devoted to the technological development of the pulp and paper industry and works together with senior experts for updating or rebuilding it as well. In addition, it can provide one-stop service regarding project plan and design, staff training, technical support and more with our new customers.
The Factory View

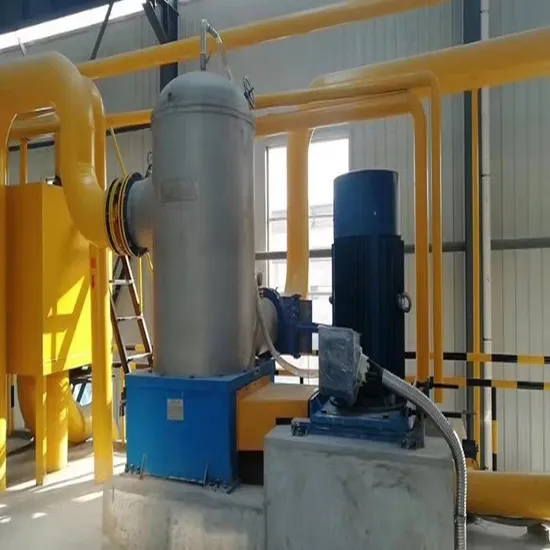

Pressure Screen
Application:
It is used for various waste paper pulp of coarse screening.
Design Features:
The new high-efficiency energy-saving upflow rotor and high-performance large-flow processing capacity screen basket developed by fluid dynamics can save 30% -60% of the power loss and improve the screening efficiency. Specially designed high-flow structure to obtain higher production capacity; up-flow design extends the life of consumables.
Technical Parameters:

Model	SCS400	SCS500	SCS600	SCS700	SCS1000	SCS1300
Screen hole size(mm)	1.2-2.6	1.2-2.6	1.2-2.6	1.2-2.6	1.2-2.6	1.2-2.6
Screen slot size(mm)	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7
Capacity(24hours)	250-400	350-500	400-600	500-700	900-1000	1100-1300
Inlet consistency(%)	2.5-3.5	2.5-3.5	2.5-3.5	2.5-3.5	2.5-3.5	2.5-3.5
Inlet pressure(Mpa)	0.15-0.3	0.15-0.3	0.15-0.3	0.15-0.3	0.15-0.3	0.15-0.3
Motor power(kw)	11-22	22-37	37-55	55-75	75-90	90-150

Remark: The yield will change due to different types of pulp, consistency and other factors. The capacity in the table is only for selection.
After-service
1. Professional exporting package for shipment and professional exporting process service.
2. Professional inspection and inspection document.
3. 12 months free warranty from the day you receive the pulper.
4. Engineers team support for the production.

---
