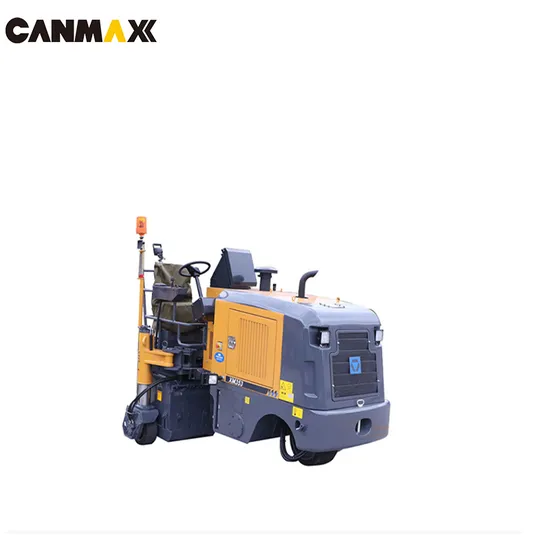

Xuzhou Mini 0.35m Asphalt Cold Milling Machine Xm353 Small Planer Milling Machine for Sale

Product Description

Product Description
XM353 is a municipal maintenance type milling machine, which is mainly used in milling operation for city streets and country roads, can also be used on small scale of pavement maintenance pavement marking, milling around the manhole cover, pit slot digging, etc.; Besides, it can be used as auxiliary equipment of large milling machine, to meet the requirement of edge milling planing.
Technical Features:
* Walking system: low speed three-wheel walking, driven by full hydraulic system, which resolves the low gradeability and slipping phenomenon and cost reduction.
* Milling system: adopt hydraulic mechanical transmission mode,stable and powerful; imports tool bit, ensure the service life of the cutting tools.
* Milling depth control: Depth indicator is installed on the rear leg, to show the milling depth. This device has optional automatic leveling system.
* Steering system: full hydraulic steering, convenient and flexible manipulation.
* Brake: two systems of service braking and parking braking.

Product Parameters

Item	Unit	XM353
Milling width	mm	350/500
Maximum milling depth	mm	120
Tool nose distance	mm	12
Number of tools		36/48
Rotor diameter with tool		580
engine model		BF4M2012-10T3R
Rated speed	rpm	2200
Rated power	kw	72
Emission Standards		China III
Fuel tank	L	110
Hydraulic oil tank	L	70
Water tank	L	260
Working speed	m/min	0-40
Walking speed	km/h	0-5.6
Theoretical climbing ability	%	50
Total weight	kg	4800
Minimum milling radius	mm	130
Ground clearance	mm	120

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, ZF GEAR BOX, etc.

---
