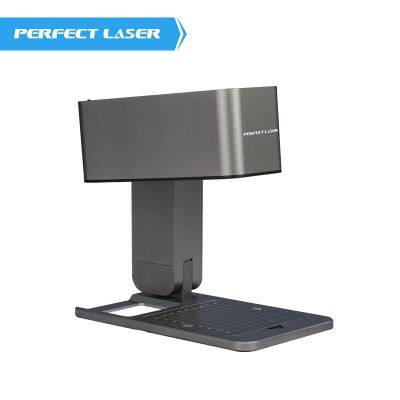

5W Intelligent Mini Fold-able Desktop Automatic Laser Engraving Cutting Machine

Product Details

Product Description

Product Description
Features:
1.The portable laser marking machine is made of high-strength aluminum body, beautiful appearance, small size,weight less than 1.9kg, can be folded into the bag, easy to carry out in outside.
2. Motor control bracket lifting, one key automatic focus, easy to operate, high reliability, long service life.
3. The rotary shaft can be inclined to any Angle, with roller, can be cylindrical, curved surface and other large and small objects engraving.
4. The portable laser marking machine bottom plate adopts hollow design, engraving space is not restricted, help sculpt large objects.
5. The portable laser marking machine built-in gyroscope, with tipping protection function.
6. Integrated galvanometer design, matching field mirror reach at more than 600mm/s, sensitive response, good compatibility, marking more stable and higher sensitivity.
7. The intelligent portable laser marking machine uses the mainstream operating system, support Win, Mac, IOS and Android software operation.
8. Can carve and cut, can cut thickness of less than 2mm wood, paper, leather, etc.
Technical Data:

Model	5W Intelligent Mini Fold-able Desktop Automatic Laser Engraving Cutting Machine PEDB-20
Laser type	Laser spot compression
Laser power	5W
Laser wavelength	455nm
Focusing mode	One-button autofocus/manual focus
Laser spot size	<0.5mm
Laser module life	About 10000h at 27℃ ring temperature
Carving speed	<600mm/s
motherboard	XJ custom motherboard, FR4 double sided glass fiber
Data transmission	USB to serial cable transmission, Bluetooth 5.0 wireless transmission
Operating software	XJ software platform (computer application + mobile App)
Supported formats	1. XJ format：XJ 2. Picture format：JPEG/BMP/PNG/JPG/GIF 3. Vector format：DXF/PLT/HPGL
Support system	Software platform(Windows OS、Mac OS、Android、IOS)
motor	Stepper motor
Motor drive	Stepper motor drive chip
processor	32-bit high-speed MCU
Engraving size (mm)	80*80mm
Electric power of complete machine	<60W
Engraving accuracy	0.05mm
Heat dissipation mode	Air cooling
Product size	22*13*22cm
Product weight	1.9KG
Safety protection function	Dip protection
Package size	35*25*14cm
Packing weight	2.95KG

---
