1bjx-1.7 Series Disc Harrow/Harrow Disc

Product Description

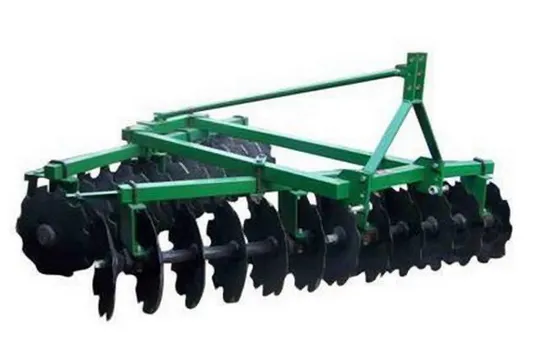

High-efficiency 1BJX-1.7 Middle-duty Disc Harrow
1BJX-1.7 middle-duty disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Advantages:
1. It is a mounted medium disc harrow for 30-80hp tractor .
2. Notched disc blade of this tractor offset disc harrow in front, and flat plough disc in rear.
3. Fit the scraper for each disc blade to clean the objects.
4. The working depth can be adjusted freely

Model	unit	1BJX-1.7
Working width	m	1.7
Working depth	cm	12~18
Disc size	mm	560×4
Disc space	mm	230
No. Of discs	pcs	16
Productivity	ha/ar	1.3
Overall size	mm	1960*1880*1317
Weight	kg	400
Linkage		Three- point mounted
Matched power	kw	25.7-33

---
