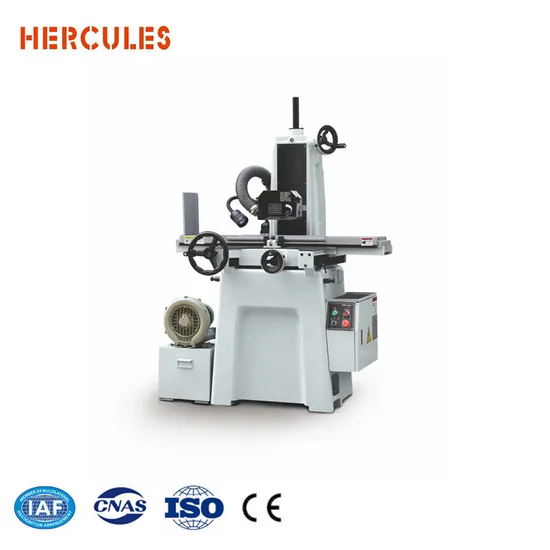

| Specification | M618B |
| Table size | 150×457mm(6×18") |
| Maximum grinding length | 475mm(18-3/4") |
| Maximum grinding width | 160mm(6-1/3") |
| Distance Spindle to table | 350-400mm(6×12")
customized up to 430mm |
| About feed |
| Manual feed | 485mm(19") |
| Before feeding |
| Manual feed | 180mm(7") |
| The manual feed per scale | 0.02mm(0.001") |
| The manual feed per revolution | 5mm(0.2") or 3mm(0.1") |
| Lifting feed |
| Each scale handwheel feed | 0.005mm(0.0002") |
| Handwheel feed per revolution | 1mm(0.05") |
| Grinding wheel |
| wheel size (diameter×width×diameter) | 180mm(7×2/3×1-1/4") |
| Spindle speed | 60Hz/50Hz-3600/3000rpm |
| Motor |
| Spindle motor | 1.5/2HP |
| Weight |
| Net weight | 850kgs |
| Packing size | 1550×1150×1980mm(55×45×78") |
| Hercules Machinery Equipment Ltd. |
