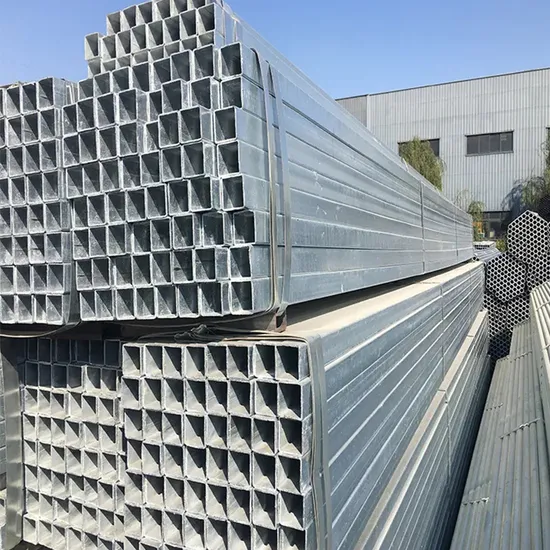

Galvanized square tube is a square section steel pipe that has undergone galvanizing treatment. It has the characteristics of corrosion resistance and durability, and is widely used in fields such as construction, machinery manufacturing, agriculture, and transportation.
| COMMODITY NAME | SQUARE AND RECTANGULAR HOLLOW SECTION PIPE/ TUBE |
| Grade | 10#-45#, 16Mn, A53-A369, Q19 |
| STANDARD | ASTM, DIN, GB, JIS, ASTM A513-2007, DIN EN 10208-1-1998, DIN EN 10216-1-2004, GB/T 3094-2000, JIS G3465-2006, JIS G3466 |
| PIPE SURFACE | Galvanized, black painted, or anti-rust oiled |
| PIPE ENDS | PLAIN ENDS |
| Section Shape | Square |
| SurfaceTreatment | oil,paint |
| Outer Diameter | 20*20-600*600 |
| Thickness | 1.0 - 35 mm |
| REGULAR SIZE |
| SIZE (OUTER DIAMETER) | WALL THICKNESS | LENGTH |
| 20x20 / 25x25 | 1.2MM --2.75MM | 6M IN STOCK (OR CUSTOMIZED) |
| 30x30 / 20x40 / 30x40 / 25x40 | 1.2MM -- 3.5MM | 6M IN STOCK (OR CUSTOMIZED) |
| 40x40 / 50x5030x50 / 25x50 / 30x60 / 40x60 | 1.2MM -- 4.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 60x60 / 50x70 / 40x80 / 40x50 | 1.2 MM -- 5.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 70x70 / 60x80 / 50x80 / 100x40 / 50x90 | 1.5MM -- 5.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 75x75 / 80x80 / 90x90 60x100 / 50x100 / 120x60 / 100x80 / 60x90 | 1.5MM -- 7.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 100x100 / 120x80 | 1.8MM -- 7.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 120x120 / 130x130 180x80 / 160x80 / 100x150 / 140x80 / 140x60 | 2.5MM -- 10.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 140x140 / 150x150 / 100x180 / 200x100 | 2.5MM -- 10.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 160x160 / 180x180 / 200x150 | 3.5MM -- 11.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 200x200 / 250x150 / 100x250 | 3.5MM -- 11.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 250x250 / 250x200 / 300x150 / 300x200 | 4.5MM -- 15.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 300x300 / 350x200 / 350x250 /300x150 | 4.5MM -- 15.0 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 350x350 350x300 / 450x250 / 400x300 / 500x200 | 4.5MM -- 15.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
| 400x400 / 280x280 450x300 / 450x200 / 400x350 / 400x250 / 500x250 / 500x300 | 4.5MM -- 15.75 MM | 6M IN STOCK (OR CUSTOMIZED) |
