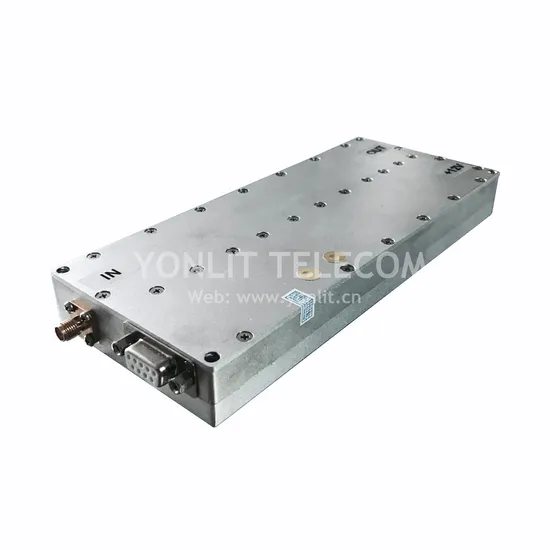

| US$1,500.00 | 1 Piece (MOQ) |
| Item | Parameters | ||
| Frequency Range | 5.2-5.4GHz, 5.5-5.6GHz, 5.7-5.9GHz | ||
| Gain | >40dB | ||
| RF Output Power | 20W | 43dBm | |
| 50W | 47dBm | ||
| 100W | 50dBm | ||
| Input Level | 10-15dBm | ||
| In-Band Ripple | 1dB | ||
| Input VSWR | ≤1.5 | ||
| Output VSWR | ≤2 | ||
| Working Voltage | 20W&50W | 28VDC or 12VDC | |
| 100W | 28VDC | ||
| Working Current | 20W | 3.5A for 28VDC; 7A for 12V | |
| 50W | 6A for 28VDC; 13A for 12V | ||
| 100W | 11A | ||
| Harmonics | ≥12dBc @Odd harmonics, ≥15dBc @Even harmonics | ||
| Spurious | >60dBc @CW | ||
| In/Out Impedance | 50ohms | ||
| RF Input Port | SMA -Female | ||
| RF Output Port | SMA -Female or NK | ||
| Power Interface | Pull-core capacitor | ||
| Working Temperature | -20~65ºC | ||
| Efficiency | ≥25% @CW | ||
| Dimension | About 180x91x26, 170x100x25mm | ||
| Protection (Optional) | Shutdown over more 70ºC, Auto-restart less than 50ºCor after 30s | ||
| Shutdown over Output High-VSWR | |||
| I/O Port Definition | DB9,Male (Optional) | PIN1: VSWR (VSWR ALarm) | |
| PIN2: TEMP (Temperature ALarm) | |||
| PIN3: V+ (Forward Power indicator) (0-4V) | |||
| PIN4: Vt (Temperature indicator,-40 to 150, 0.1-1.5V) | |||
| PIN5: GND (Grounding) | |||
| PIN6: V- (Reversed Power indicator) (0-4V) | |||
| PIN7: Vc (Current Indicator) (0-4V) | |||
| PIN8: PTT (Enable PA. Grounding or Hang in air: ON; +5V: OFF) | |||
| PIN9: ALC (0-5V input, 5V: MAX Output Power,0V: Min Output Power) | |||
| Pull-Core Capacitor (Optional) | SWR: VSWR Alarm over High-VSWR (+3V), and PA shutdown | ||
| TEMP: Alarm Over High-Temperature (+5V), and PA shutdown | |||
| GND: Grounding | |||
| Vt: Indicator for Temperature, Vt=0.5V+TC×10mV/ºC; | |||
| V+: Indicator for Forward RF Power (Max:5V) | |||
| PTT: Enable PA, 5V: PA OFF; Hang in air or grounding: PA ON | |||
| DB9 Male RS485 (Optional) | PIN1,PIN2: RS485A; PIN3,PIN4: RS485B; PIN5: GND | ||
| Data Protocol: China Mobile Standard | |||
| PS: Items marked with "Optional" are not standard items, if need those functions should info us before production. | |||
