High Performance CNC C Steel Framing Profile Forming Machine

Product Description

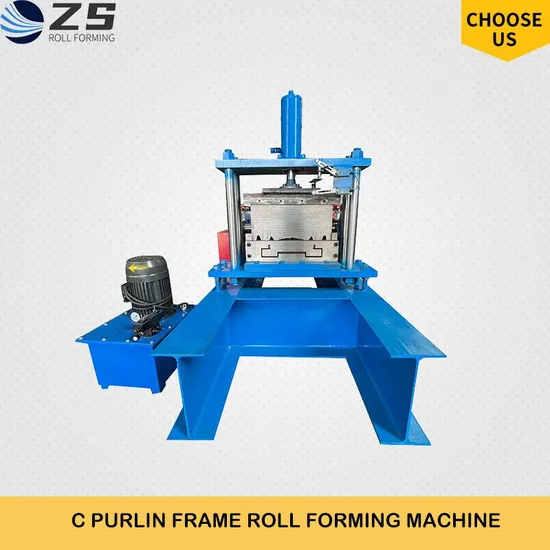

C Purlin Cold Roll Forming Machine

We are proffestional manufaturer,we can design the machine as customer requirement.
Equipment components: Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting.
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.



Material Lip(A):15±1mm Height(B):C25-80±2mm Web(H/C):C50-250±2mm Applicable material:Galvanized Sheet(GI) With Yield Strength:234-345Mpa

Size Available:
Machine Components:
Feeding and Leveling Device:
Diameter of shaft:70mm
No. of Shaft:7
Main Machine Body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm
Rollers manufactured from GCr15/Cr12 steel,CNC lathes,Heat Treatment
Shafts Diameter=ф80,precision machined
Gear/Sprocket driving,about 15-step to form
Main Motor=15KW , Frequency speed control
Speed redcucer motor
Post Hydraulic Cutting Device Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:5.5KW,with Hydrualic Pre-Punching Device Share a hydraulic station ;
Cutting tool material: Cr12MoV,Heat treatment to HRC58-62 degree

PLC Control System Control The Quantity And Cutting Length Automatically Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) or Delta(Taiwan brand)
Inverter	Siemens (German brand) or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service: 1. The warranty is 18 months after the client receives the machine. Within The 24months, we will courier the replacement parts to the client free of charge 2.We offer technical support for the entire life of our machines 3. We can send our technicians to install and train the workers in the clients' factories with extra cost Terms Of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
