ISO12945 ISO12947 ASTM D4966 ASTM D4970 ASTM D3886 4/6/8/9 Stations Martindale Abrasion Tester, Abrasion and Pilling Tester

Product Description

Product Description

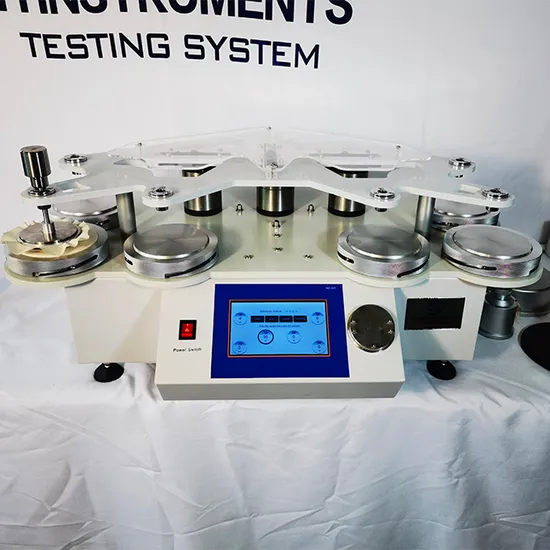

Martindale Abrasion and Pilling Tester is used for abrasion resistance and pilling test of woven fabrics, knitted fabrics, pile fabrics, coated fabrics, non-woven fabrics, leather..etc.
Test Standards:
ISO5470, IWS TM112/196, DIN53863/53865, BS3424/5690, BS EN 388/530, JIS L1096, ASTM D4966/4970 , ISO12945-2, ISO17079-2, ISO 12947, ISO17704, ISO 20344, ISO 17076-2, SATRA TM31 and so on.
Features: 1. Our martindale abrasion tester. such as upper plate, different design, our machine use cooper in it, use strong plexiglass, clamp ring is better..etc, very beautiful.
2. Use touch screen is 7 inch size..
3.. Control each stations separately.
4.. Running is silent during working.
5. Draw two lissa-jous trajectory, have a good repeatablity.
6. Datas can be restored after the power offer.
7. Abrasion table is made of aluminum.
Technical Parameter:

Work-Station numbers	4, 6, 8 or 9
Counter display	Preset counter display: 0-999999 Cumulative counter display: 0-999999
Speed	47.5+/-2.5rpm (25rpm, 75rpm optional)
Abrading table diameter	φ120mm
Abrasion test	A: cloth specimen clamp:198g+/-2g
	B.textile specimen hammer:395g+/-2g (Equal to 9Kpa)
	C: furniture deck specimen hammer:594g+/-2g (Equal to 12Kpa)
Pilling Test	A: cloth specimen clamp:155g+/-1g
	B: textile specimen hammer:260g+/-1g
Weight of load hammer	2385g+/-10g
Dimension	850mm×600mm×400mm
Weight	90 Kgs
Power:	110V/220V, 50Hz/60Hz

Recommendend Products

Company Profile

Packaging & Shipping
FAQ
1. How About Machines Calibration?
Answer: All machines is calibrated well in house before it is out of factory, XH Instruments will provide you calibration report, if you need calibration certificate from third party, such as ISO 17025 certificate, we also can provide you with extra charge.
2. What about delivery way and delivery item?
Answer: Courier Express Delivery, Sea Delivery, Air Delivery.
EXW Works, FOB, C&F, CIF, ClP, CPT, FCA, DDU.
3. How can I pay you?
Answer:Bank TT, Western Union, L/C, Paypal.
4. How about you after service?
Answer: XH Instruments will give a feedback within 24 hours.Warranty Period is 12 Months.
For problem caused by product quality within warranty period,XH Instruments will provide product maintenance, technical support, freight out and home as well as spare parts free of charge.
Problem not caused by product quality within warranty period or maintenance beyond warranty period is only charged for replaced parts. However, freight charges home and out are at customer' side (only the replaced part is charged if transportation of instrument is unnecessary).

---
