Unmanned Aerial Vehicle Defense Uav Drones Detection Radar

Product Description

Product Description What is XIPHOS Anti-Drone System?
XIPHOS is a unique multi-sensor fully self-contained solution for detecting, tracking, identifying and neutralization drones.
It can be delivered vehicle-mounted or assembled in a fixed location. XIPHOS's modular, multi-layered system and its
counter-measures deliver comprehensive solutions for airports, critical infrastructures, oil refineries and national events against evolving drone threat. Its high-end performance and affordable cost make the XIPHOS DOME the equipment of choice for
governments, municipalities and high-end security companies to detect and rapidly respond to unlawful drone incursion. ANTI-DRONE SYSTEM *Detecting *Tracking *Identifying *Neutralization Anti-Drone System Features
1.Multi-sensor system for drone detecting, tracking, identifying and neut drones.
2.360° coverage.
3.Affordable hardware with smart software.
4.Windows-based OS with activated "point-and-click" zoom & deterrent activation.
5.Visual confirmation up to 1.5 km.
6.Operates in all weather conditions.
7.Open architecture.
8.Easily integrated, compatible with other security and display systems. System Details 360° Radar Detection System

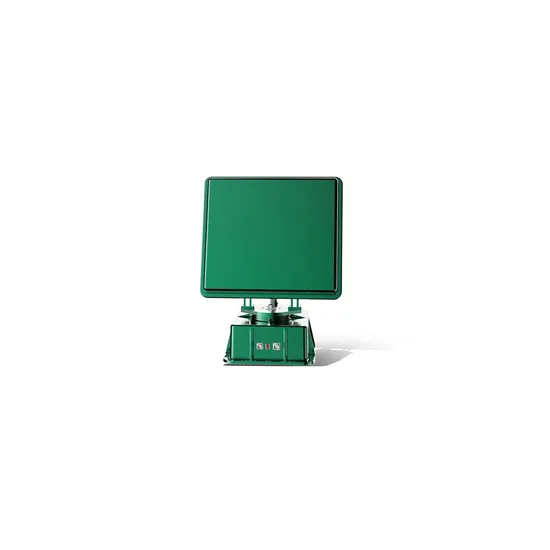

XIPHOS's radar system is affordable, light weight and portable. It offers 360° continuous coverage of up to 5 km. It is smart, with the ability to identify the range, azimuth, elevation and velocity measurement of up to 50 targets while calculating their distance and time of arrival.
Features:
1.Detect all targets regardless of frequency bands
2.High resolution
3.High success rate of target detection
4.Up to 5 km detection range
5.Affordable Specifications:

Radar Detection Range	3 km/5 km
Azimuth Coverage	360°
Target Capacity	50 targets simultaneously
Scan Rate	60°/s
Communication Interface	RS485/10/100 Ethernet
Display Interface	10/100 Ethernet
Weight	30 kg
Dimension	740 X 600 X 600 mm
Operating Temperature	-20°C to + 60°C
Power Consumption	110 W/150 W
IP Level	IP65
MTBF	100000
Power Supply	AC:110 V (AC:220 V Optional)

360° RF Detection and Neut System This passive RF detection and neut system is highly compatible. It's able to detect, identify and neut targets up to 3 km.
Specifications:

Frequency Ranges	430-440 MHz 10 W (Optional)
		900-930 MHz 20 W (Optional)
		5710-5900 MHz 20 W
		2400-2505 MHz 20 W
		1550-1620 MHz(GPS) 10 W
Neutralization Range	1.5 km
Max Power Consumption	330 W
Operating Temperature	-25°C to +55°C
Weight	≤14 kg
Dimension	401 X 404 X 571 mm

Software Platform
We tailored our smart software so that our customer can enjoy unlimited coverage by combining multiple devices into an integrated sensor network.
Features:
1.Easy to use Windows-based OS to integrate multiple sensors onto one display
2."Point-and-roll" or "double-click" zoom in/out
3.One-click deployment and deterrent activation
4.Customizable alarm zones360° or sectional scan
5.Reports with detailed information and statistics.

---
