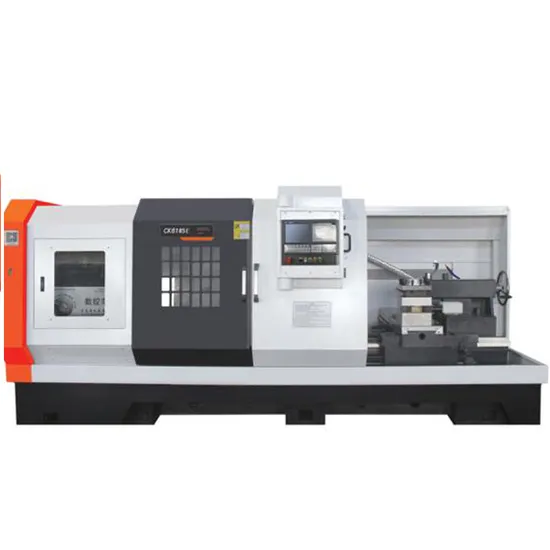

Ck6152e/3000 Heavy Metal Horizontal CNC Lathe Machine Price

Product Description

Product Description

High rigidity bed
Integrated casting, the base is made of gray graphite cast iron (HT300), with high load, wear and wear resistance, high rigidity mechanical properties, the bed can choose 1000/1500/2000/3000
Product Parameters
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
1. Bed width 440mm
2.higher stability one-piece machine cast iron stand .
3.3 gear spindle speed, stepless in gear
4.higher rigidity pedestal
5.wider layer board
6.integrated automatic lubrication system
7.one piece cast iron stand for convenience chip conveyor and more rigidity.
8. Spindle bore dia. 90mm

ITEM	UNIT	SPECIFICATION
MODEL		CK6152E×1000/1500/2000/3000
Max. swing over bed	mm	Φ530
Max. swing over cross slide	mm	Φ280
Max . work piece lenth	mm	825/1325/1825/2825
Spindle bore	mm	φ90
Spindle nose		C11
Chuck	mm	Φ250
Spindle taper	No	Metric 100,1:20
Spindle speed	rpm	Manual,3 step
		(10 ~85,40 ~ 350,100~850)
Tail stock quill dia	mm	φ75
Tail stock quill taper	No	MT5#
Tail stock quill travel	mm	150
Tool post		4
Tool shank size	mm	25×25
X /Z axis rapid traverse	m/min	6/ 8
X axis travel	mm	300
Z axis travel	mm	1000/1500/2000/3000
Spindle motor power	KW	7.5
Total power capacity	KW	12/13
Machine dimension (L*W*H)	Kg	2600/3100/3500/4800×1900×1900
N.W.	mm	2900/3150/3500/4300

STANDARD ACCESSORIES:FREE
GSK980TDC or Siemens 808d NC system
7.5 kw inventer main motor
4 station electric turret
250mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
OPTIONAL ACCESSORIES:EXTRA COST
Fanuc 0I mate TD NC system
6 station or 8 station electric turret
steady rest
follow rest
7.5/11 kw servo motor
11 kw inverter motor
10" domestic solid hydraulic chuck
10" domestic thru-hole hydraulic chuck
10" Taiwan solid hydraulic chuck
10" Taiwan thru-hole hydraulic chuck
Full cover
