Biomass Wood Sawdust Pellet Machine Wood Pellet Making Machine Wood Pellet Mill Machine Wood Pellet Press Machine Pelletizer Machine

Product Description

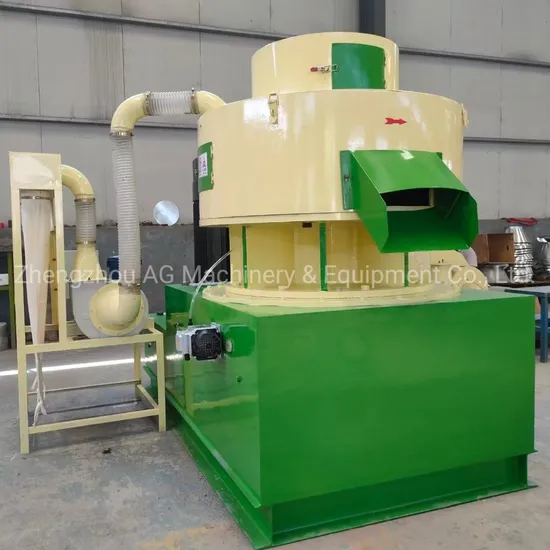

Biomass Wood Sawdust Pellet Machine Wood Pellet Making Machine
Wood Pellet Mill Machine Wood Pellet Press Machine Pelletizer Machine
1. Specifications of Wood Sawdust Pellet Granulator:

Model	Inner Dia of Ring die	Power (Kw)	Capacity (ton/hour)	Dimension (m)	Weight (Kg)
450 MX	450mm	55 kw	0.8-1.0T	1.4*0.75*1.55	2800
550 MX	550mm	90 kw	1.5-2T	1.9*0.95*1.8	4500
800 MX	800mm	132 kw	2-3T	2.5*1.35*2.1	7000
1000 MX	1000mm	160 kw	3-4T	2.65*1.45*2.1	8500

2. Features of Wood Sawdust Pellet Granulator:
(1).Gearbox:
Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period
(2).Vertical motor:
The most characteristic is mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working
(3).Blower system:
Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam
(4).Working parts:
Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity.
At the same time assure hardness and density, The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is "vertical double-deck" structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.
3. Raw Materials for Wood Sawdust Pellet Granulator:
Widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk,
grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc..
4. Final Pellets from Wood Sawdust Pellet Granulator:
Wood pellets are the most common type of pellet fuel and are generally made from compacted sawdust and related industrial wastes from the milling of lumber, manufacture of wood products and furniture, and construction. Other industrial waste sources include empty fruit bunches, palm kernel shells, coconut shells, and tree tops and branches discarded during logging operations
5. Equipments Included for Wood Sawdust Pellet Granulator:
1) Wood Chipper
2) Wood Crusher
3) Sawdust Dryer
4) Wood Pellet Granulator
5) Cooler & Screener
6) Packing Machine
6. FAQ:
(1). How many days will be ready for delivery after payment?
Normally, It will cost around 7-15 Working Days.
(2). What kind of Types we can choose for Making Fuel Pellets?
We have Flat Die pellet making machine with capacity range from 100Kg/Hour to 500Kg/Hour.
and Ring Die Pellet Making Machine with Capacity Range from 800Kg/Hour to 4000Kg/Hour.
(3). Final Pellets Size?
Normally, Diameter of Biofuel Pellets are 6mm, 8mm, 10mm, etc.
Length of Biofuel Pellets Adjustable according to your demand.
(4). Package Safe?
Yes, It is safe. We are using Plastic firstly before wooden package.
(5). Can you offer Whole solutions of wood making machinery?
Yes, We have a whole series machinery related to wood machinery, from wood splitter, wood chipper, wood crusher, drying machine, wood pellet making machine, cooling machine, and packing machine, etc.

---
