Mg-C600 Disposable Middle Speed Paper Cup Machine

Product Description

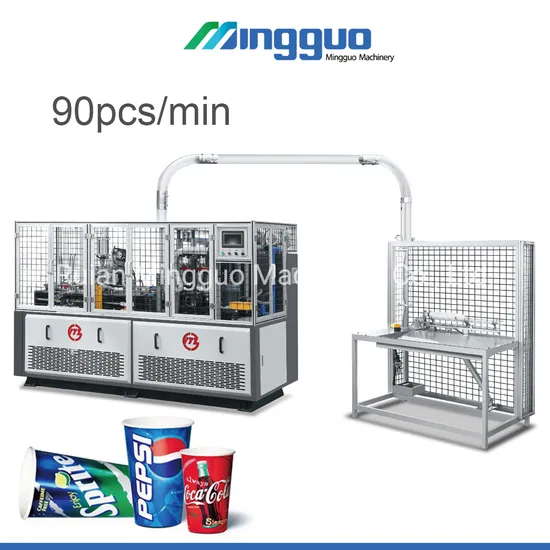

MG-C600 Medium Speed Paper Cup Machine
MG-C600 single-disc medium-speed paper cup forming machine has been upgraded on the basis of the old C700, shortening the overall stroke of the equipment operation, thereby improving the production efficiency in relative time; the whole machine uses spraying and lubrication to reduce the machine Wear of parts; adopting open intermittent cam system, gear transmission, high precision, high output, greatly increasing the service life, and making up for the inherent disadvantages of jitter and unstable transmission during chain transmission. The cup wall and the bottom of the cup adopt the Swiss Leister heater (optional for the heater brand); the cup making process is controlled by PLC, and the photoelectric eye is used for full fault monitoring and servo control to improve the performance of the equipment and achieve fast and stable operation. Automatic shutdown on failure, which greatly reduces the labor intensity of workers and improves the safety and stability of equipment.
Technical Specification

Model	MG-C600
Paper cups specifications	2.5-16oz 75-450ml(mold exchangeable) T:50-95mm H:60-135mm B:35-75mm
Paper specification	150-350 GSM single/double PE coated paper
Speed	70-90pcs/min
Voltage	220/380V
Full load power	7KW
Air supply requirement	Air pressure:0.5-0.8Mpa,Air Out-put:0.5cbm/min
Total Power	2500KG
Dimensions	Machine:2600x1350x1700mm
Optional Equipmen	Paper bowl machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.
(NOTICE) Customization	Customizable Almost all of our paper container forming machines can be modified and customized for Paper cups and Paper bowls. Please let us know your cup/bowl specifications and any of the other requirements, we will offer the professional solution to you.

Pre-sales and After-sales Service
Pre-sales service a.Provide products and related consultation. b.Free provision of paper cup samples (excluding freight). c.Customers can visit the factory in person to visit the machine. After-sales service: a.Paper cup machine warranty: 1 year b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period. c.We supply the consumable spare parts for free for one year use.
FAQ
1. What products can be made by your machines?
Tea cups, coffee cups, ice cream cups, noodle bowl, salad bowl, KFC bucket etc.
Almost all the regular or irregular paper containers for fast food and drinks

2. What volume of the cup/bowl/bucket that you can make?
From 2-190OZ, about 50-5000ml

3. Are you a source manufacturer?
Yes, any of the factory visit tour appointments at any time are acceptable and warmly welcomed

4. What about the payment term?
Usually 30%T/T in advance, 70% Balance before shipping

5. What should I let you know before getting a relatively accurate quotation?
--Sample pictures
--Specifications of cups (Top diameter, Bottom diameter, Height)
Draft is the best if possible.

--GSM of single/double PE coated paper

Warmly welcome to contact us
FOR more details and professional 1-to-1 service
