Ly Vacuum DC RF Mf Magnetron Sputtering PVD Vacuum Coating Machine

Product Description

Product Description
MF magnetron sputtering series coating machine
Medium-high temperature medium-frequency vacuum coating machine is a device that works under a relatively high vacuum degree. It is mainly used to form a thin film on a substrate (the object to be coated). The working principle of this coating machine is mainly based on two technologies: evaporation and sputtering.Medium frequency magnetron sputtering technology is one of the more prominent technologies in medium-high temperature medium frequency vacuum coating machines. It uses magnetic field to control the movement of electrons in non-uniform electromagnetic field, so that the evaporated molecules of the film body are accelerated to bombard the target material under the action of electric field, sputtering a large number of target atoms, which are deposited on the substrate to form a thin film. This technology has the characteristics of high sputtering rate, low substrate temperature rise, good film-substrate bonding, and stable device performance.
Sputterable materials: ZrN, TiN, TiN, CrN, TiCN, TiAIN, TiAICN,TiAICrN etc.
Coating color: gold, champagne gold, gun black, dark black, rose gold, blue, green, etc.
Application fields: sanitary ware, clocks, lamps, hardware and other medium and high temperature alloy industries.
Equipment features
Equipment features: The equipment has the advantages of quick pumping, strict control of process temperature, fast deposition, and good process repeatability.
Sputterable materials
ZrN, TiN, TiN, CrN, TiCN, TiAIN, TiAICN,TiAICrN etc.

Coating color
Coating color: gold, champagne gold, gun black, dark black, rose gold, blue, green, etc. Application
Application fields: sanitary ware, clocks, lamps, hardware and other medium and high temperature alloy industries.
Comparison between ordinary TiN and real gold.Helped customers achieve the color of real gold without plating real gold.Can you tell the difference between real and fake colors?
Multi-arc + magnetron sputtering technology can perfectly achieve the various colors expected by customers.
what colors do you need,please don't hesitate tell me. We can not only provide equipment, but also teach you coating technology.

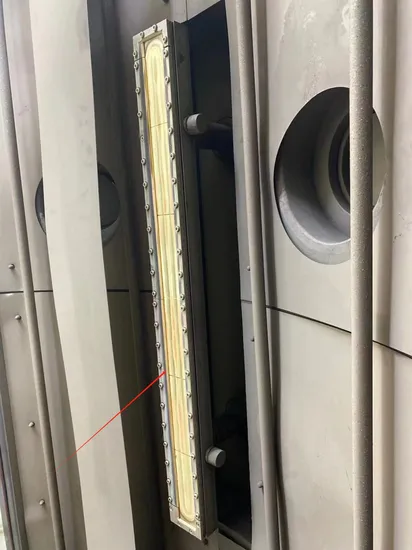

In vacuum coating, the arc is an important part of the equipment. Our company has advanced arc operation technology, which can effectively provide effective use space for arc targets.
Product Parameters

Technical data	LY1212	LY1612	LY1912
(Pumping speed (no load clean)	5.0x10-3<10min	5.0x10-3<10min	5.0x10-3<10min
Ultimate vacuum (Pa)	8.0x10-4 Pa	8.0x10-4 Pa	8.0x10-4 Pa
Heater power	18/36KW	36/54KW	36/54KW
Total power (Kw)	50/70KW	50/75KW	50/80KW
water cooling temperature	<25ºC	<25ºC	<25ºC
Water cooling flow	20T/h	20T/h	20T/h
Number of MF targets	2/4 pair	2/4 pair	2/4 pair
Number of multi-arc targets	5/10 sets	5/10 sets	5/10 sets

---
