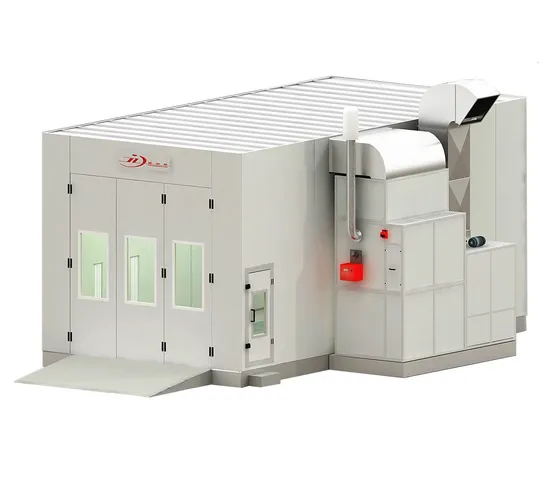

Diesel Heating Paint Cabin Auto Paint Cabin Booth Auto Paint Spray Booth for Auto Refinishing

Product Description

Diesel Heating Paint Cabin Auto Paint Cabin Booth Auto Paint Spray Booth for Auto Refinishing Product Parameters

Outside Dimension (mm)	9146*6400*4100(L*W*H)	Inside Dimension(mm)	6900*4000*2650(L*W*H)
Front Door(mm)	3300*3400(W*H)	Service Door (mm)	1800*650(W*H)
Total Power	30KW
Cabin Dystem	Wall panel	70mm EPS sandwich panel, steel sheet thickness: 0.426mm
	Ceiling panel	0.8mm galvanized steel sheet.
	Basement	350mm depth, full grids
	Ramps	Four pieces 2500*900mm ramps
	Windows	5mm safety tempered glass
Air Make-up System	Air inlet fan system	2*7.5kw centrifugal fan
	Exhausted fan system	1*15kw belt drive centrifugal fan
	Air capacity for fresh air	36000m3/h
	Air capacity for exhausted air	36000 m3/h
	Air control method	One manual damper for exhausted system
	Exhausted ducting	6 meters straight ducting, one 90°elbow and one 45°elbow.
Purification System	Pre-filter	G3 grade
	Ceiling filter	EU5 / F5
	Floor filter	Green fiber glass filter / G3 grade
	Exhausted fan filters	Fiber glass filter and active carbon
Heating System	Heat exchanger	SUS304 material, argon arc welding.
	Heating burner:	Riello RG5S diesel burner
	Heating productivity	260000Kcal/h
	Spray to baking switch	20N BELIMO brand electrical damper
	Chimney ducting	6 meters stainless ducting and one chimney cap
	Max heating temperature	80ºC
	fuel consumption	10-12L/vehicle
Lighting System	Ceiling lights	12Units, each 4 x 18W LED lamps ,Total 864W
	Side lights	12Units, each 2 X18W LED lamps, Total 432W
	Illumination	900LUX
Controlling System	Switched control panel	Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm

Product Description
Detailed Images
♦ Using High Quality Materials
♦ Stuidy and Durable Basement
♦ Safe and Simple Operation
Company Profile
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.
We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.
Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.
Our products are well-known in the industrial of the automobile, aviation, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
Welcome the customers from China and all over the world to join us!

Q: What standards are you carrying out for your products?
A: We produce according to the ISO 9001 and ISO 14001 rules.
Q: How to install the machine?
A: We will arrange 1-2 engineers to your factory to guide installation and assembly.
Q: What is your international market?
A: We have exported our products to about 50 countries and regions worldwide, such as the US, France, Singapore, Australia, the Middle East, Germany, Japan, Russia, Sweden, Finland and more
Q: What is your productivity?
A: We have two production basement - Jiangsu Jingzhongjing Industry Coating Equipment Co. Ltd and Guangzhou Jingzhongjing Industrial Painting Equipment Co. Ltd. We are specialized in automobile spray booth, automobile metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine and more.
Our yearly productivity is 2,500 sets spray booth, so we can send you products quickly.
Q: Do you have the right to export?
A: Yes, we are registered in the customs and gained the right to export by ourselves.

---
