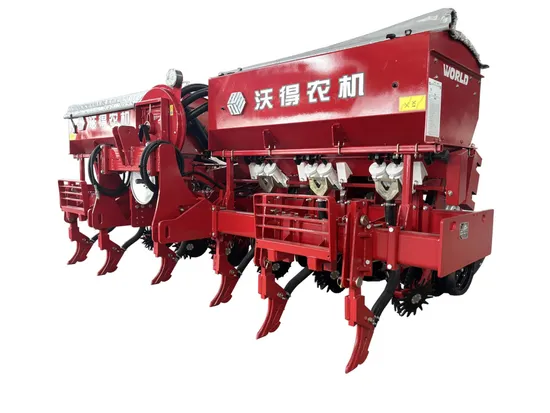

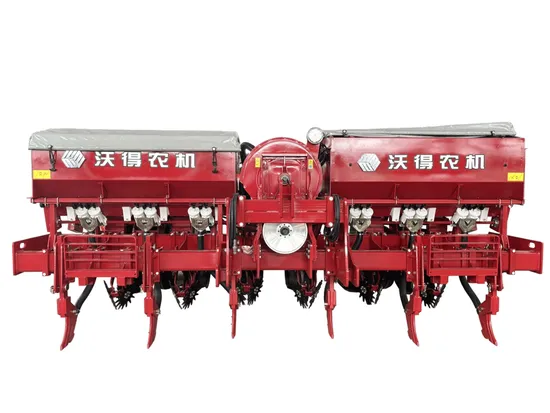

Pneumatic No-Till Seed Drill: Efficient, Sustainable Seeding
The Pneumatic No-Till Seed Drill delivers precise seed placement using air pressure, ensuring uniform distribution and optimal depth. By eliminating tillage, it preserves soil structure, enhances moisture retention, and reduces erosion. This eco-friendly design improves germination rates, reduces fuel and labor costs, and minimizes carbon emissions.
Ideal for various crops, the Pneumatic No-Till Seed Drill offers a reliable, cost-effective solution for modern, sustainable farming.
| Model | 2BMQW-6 | Seed/fertilizer tank volume (L) | Seed box 36L×6/fertilizer box 500L×2 |
| Structural type | Pneumatic/traction type | Seed/fertilizer discharge adjustment method | Seed: gear drive adjustment
Fertilizer: knob handle to adjust the size of the outer groove wheel opening |
| Matching power range (kW) | 66.2~103 | | |
| Dimensions (length × width × height) (mm) | 3365×4005×1895 | Transmission mechanism type | Ground wheel, chain drive |
| Operating speed range (km/h) | 6~10 | Opener type | Seed: double disc; fertilizer: single disc |
| Operating hourly productivity (km²/h) | 1.68~2.94 | Number of openers (pieces) | 6 for sowing; 6 for fertilizing |
| Row spacing (mm) | 550~650 | Opener depth adjustment range (mm) | 10~70 for sowing; 50~150 for fertilizing |
| Number of working rows (rows) | 6 | Ground wheel type | Concave stripe pneumatic tire |
| Working width (mm) | 3300~3900 | Ground wheel diameter (mm) | Ø767 |
| Type of seeding device | Pneumatic type (metal material) | Ground wheel height adjustment range (mm) | No adjustment |
| Number of seeding devices (pieces) | 6 | Stubble breaking and ridge clearing working parts type | Dual-sided star-shaped weeding wheel + corrugated disc |
| Drive mode of seeding device | Ground wheel drive | Blower type | Mechanical centrifugal fan |
| Type of fertilizer device | External groove wheel type | Blower impeller diameter (mm) | Ø400 |
| Number of fertilizer devices (pieces) | 12 | Soil cover type | V-shaped rubber wheel |
| Drive mode of fertilizer device | Ground wheel drive | Package type |
