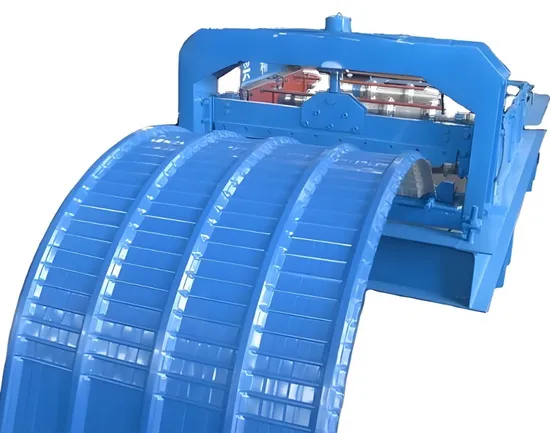

High Quality Horizontal Steel Crimp Curving Machine Profiling Machine Factory Price

Product Description

1-Product Feature of
The colored steel tiles produced by this machine look beautiful ,elegant and noble .They are widely used as the roof of garden ,factory ,hotel,exhibition center and villa ,etc .

No.	item		Parameter(all is subject to our final design)
1	Suitable raw material	Type	Common galvanized & pre-painted steel
		Yield strength	235MPa(or other high strength steel)
		Thickness(mm)	0.4-0.7
		width(mm)	According to final design
2	Manual uncoiler's capacity		Max.5tons
3	Forming speed(m/min)		About 18-20m/min
4	Main motor power(KW)		7.5kw
5	Hydraulic power(KW)		3kw
6	Forming roller groups		Around19-20 groups
7	Raw material of forming roller		High quality No.45 steel
8	Raw material of cutting blade		Cr12mould steel with quenched treatment
9	controlling system		Mitsubishi PLC& converter
10	Suitable industrial voltage		According to your special requirement
11	Machine dimensions(L*W*H)		6.8m×1.8m×1.52m
12	Machine weight		About 9-10tons

2-Machine components
Tile forming machine consist of uncoiler, coil sheet guiding machine ,covering film device ,main roll forming system, pressing device,cutting device,Hydraulic station ,PLC control system and support table .
3.Working flow
uncoiling the sheet---guiding the sheet---covering the film---roll forming punching the step---measuring the length---cutting the panel---panels to the supporter
