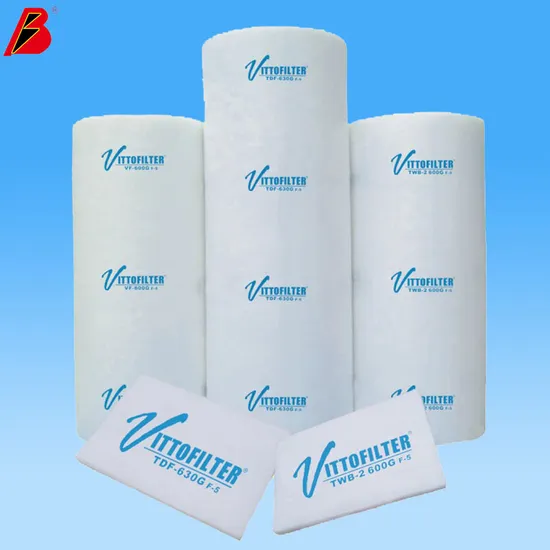

Free Shipping Floor Air Filter for Spray Booth

Product Description

Remark: The filter are used for spray booth.It can get good discount if buy together with our spray booth.Put into the container and load with spray booth in the empty space can get free shipping.
Pre-Filter (Before Fans)
1. SY-20 Coarse filter cotton (120g/m2)
·Washable and reusable
·Low resistance
·Excellent flame retardant
·Flexible
·Economical and practical
Application: ≥5μm , Filter dust (especially used in the train or the subway, where the place has air-conditioner), pre-filter through air filter program
Type: pads or rolls size
Media: synthetic fiber with gradual density.
Washable: about 2-3 times
EN779 class: G2
Average arrestance:75%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU2
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 100Pa-(max)200Pa
Max. Dust holding capacity: 430g/m2
Temperature resistance: 100ºC

Type	Dimensions			Rated air velocity(m/s)	Initial pressure drop (Pa)	Rated air flow(m2/h)
	Length(m)	Width(m)	Thickness(mm)
Rolls	20	1/2	10 ± 2	1.0	18	3600

2.SY-30 Coarse filter cotton(120g/m2)
·Washable and reusable
·Low initial resistance
·Large dust holding capacity
·Flexible
·Economical and practical
Application: ≥5μm, Filter dust , (especially used in the train or the subway, where the place has air-conditioner), pre-filter through air filter program
Type: supply pads or rolls size
Media: synthetic fiber with gradual density, inlet side is blue.
Washable: about 4-5 times
EN779 class: G3
Average arrestance:88%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 150Pa-250Pa
Max. Dust holding capacity: 520g/m2
Temperature resistance: 100ºC

Type	Dimensions			Rated air velocity(m/s)	Initial pressure drop (Pa)	Rated air flow(m2/h)
	Length(m)	Width(m)	Thickness(mm)
Rolls	20	1/2	15 ± 2	1.5	20	5400

3. SY-40 Coarse filter cotton(230g/m2)
·Washable and reusable
·Low initial resistance
·Large dust holding capacity
·Flexible
·Economical and practical
Application: ≥5μm, Filter dust, (used in the places
where need washing and filtering),
pre-filter through air filter program
Type: supply pads or rolls size
Media: synthetic fiber with gradual density
Washable: about 7-8 times
EN779 class: G4
Average arrestance:91%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU4
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 200Pa-250Pa
Max. Dust holding capacity: 620g/m2
Temp. resistance: 100ºC

Type	Dimension			Rated air velocity(m/s)	Initial pressure drop (Pa)	Rated air flow(m2/h)
	Length(m)	Width(m)	Thickness(mm)
Rolls	20	1/2	20 ± 2	1.0	38	3600

Roof-Filter (Under the air room)
4. SY-560G Ceiling filter (400g/2)
·Low initial resistance
·Large dust holding capacity
·Flexible
·Outlet side with net or cloth mesh to reinforce
Application: capturing 1-10μm particles,
especially for the top part of spray booth,
prefiltration mesh to reinforce through air
filter system, diffluent equally
Type: supply pads or rolls size
Media: synthetic fiber with gradual density,
surface of inlet side with adhesive treatment
EN779 class: F5
Average arrestance:96%(ASHRAE52.1-1992)
Average efficiency: 45%-55 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU5
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 400Pa
Max. Dust holding capacity: 450g/m2
Temperature resistance: 100ºC
Instant temperature: ≤120ºC

Type	Dimensions			Rated air velocity(m/s)	Initial pressure drop (Pa)	Rated air flow(m2/h)
	Length(m)	Width(m)	Thickness(mm)
Rolls	14/21	1.6/2	22	0.30	38	1080

5. SY-600G Ceiling filter(600g/2)
•Low initial resistance
•Large dust holding capacity
•Flexible
•Outlet side with net or cloth

Application: capturing to particles, especially
for the top part of spray booth, prefiltration through
air filter program, diffluent equally
Type: supply pads or rolls size
Media: synthetic fiber with gradual density, full
imregnated with adhesive treatment
EN779 class: F5
Average arrestance:96%(ASHRAE52.1-1992)
Average efficiency: 45%-55 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU5
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 400Pa
Max. Dust holding capacity: 480g/m2
Temperature resistance: 100ºC
Instant temperature: ≤120ºC

Type	Dimension			Rated air velocity(m/s)	Initial pressure drop (Pa)	Rated air flow(m2/h)
	Length(m)	Width(m)	Thickness(mm)
Rolls	14/21	1.6/2	22	0.25	40	900

Floor-Filter (Under the Grids)
6. PA-50 Paint arrestor(2,50g/ms)
·Low initial resistance
·High separation efficiency
·Different color on inlet and outlet side
·Flexible
·Economical and practical
Application: used in the spray booth or filter mist in the kitchen
Type: supply pads or rolls size
Media: fiber glass with gradual density, inlet side is
green,outlet side is white
EN779 class: G3,G4
Average arrestance:93%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3, EU4
Average separation efficiency: 95%
Final resistance: (suggested) 130Pa-200Pa
Temperature resistance: 170ºC

Type	Dimensions			Rated air velocity(m/s)	Initial pressure drop (Pa)	Rated air flow(m2/h)
	Length(m)	Width(m)	Thickness(mm)
Rolls	20	0.8/1/2	50/60	2.0	10	7200

Remark: All Above filter are use for spray booth.It can get good discount if buy together with our spray booth.Put into the container and load with spray booth in the empty space can get free shipping.

---
