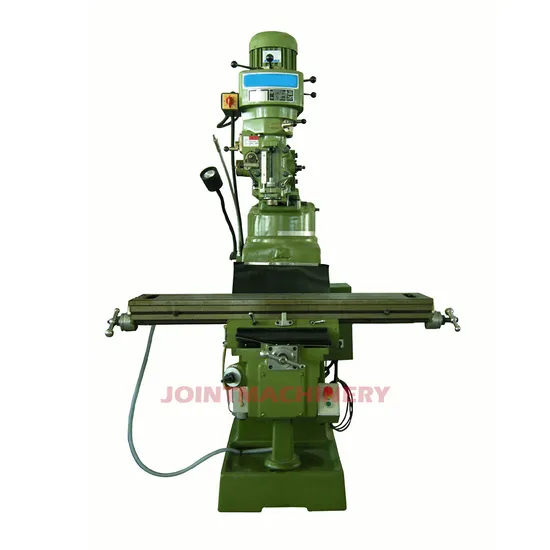

4ea Strong Cutting Manual Metal Milling Machine Tool for Various Metal Applications

Product Description

Experience unparalleled durability and outstanding cost-effectiveness with our universal model, designed to meet the highest standards of quality.
√ Enjoy an unbeatable combination of low price and exceptional quality.
√ Assembled with precision, using premium components sourced from Taiwan and crafted in China.
√ Boasts a spindle tolerance of just 0.005mm, ensuring superior precision in every operation.
√ Perfectly suited for the processing of molds used in household appliances and everyday necessities.
1. WORKTABLE
Our worktable is masterfully engineered with advanced ultra-audio quenching, precision grinding, and expertly scraped guides, providing unparalleled smoothness and precision. Choose a rotary table to unlock even more versatility and functionality.
2. TURRET MILLING HEAD
The cutting-edge turret milling head is designed to swivel 45° forward-backward and rotate 90° left-right, enabling effortless milling for intricate angles and complex project requirements.
3. SPINDLE
Featuring a high precision R8/NT30/NT40 spindle, with a mere runout of 0.003mm, it promises unmatched precision and accuracy for your tasks.
4. X/Y/Z AUTO FEED
Our automatic feed system for the X/Y axes and electric lifting for the Z axis greatly enhance operational efficiency, making your work significantly more streamlined and efficient.
5. DRO
Elevate your precision operations with our customizable 2-axis or 3-axis DRO, tailored precisely to your needs to deliver enhanced performance.
4EA Strong Cutting Manual Metal Milling Machine Tool for Various Metal Applications

Model				4EA
Table size			mm	1370*280*90
Travel		X axis	mm	1000
		Y axis	mm	410
		Z axis	mm	325
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	470
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4540
		60HZ	rpm	80-5440
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1500*1800*2200
Weight			kg	1550
