US$2,500.00-4,500.00
|
1 set
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, RoHS, ISO 9001
Transport Package
Wooden Case
Specification
1600x1750x2200mm
Production Capacity
20untis/Month
Product Description

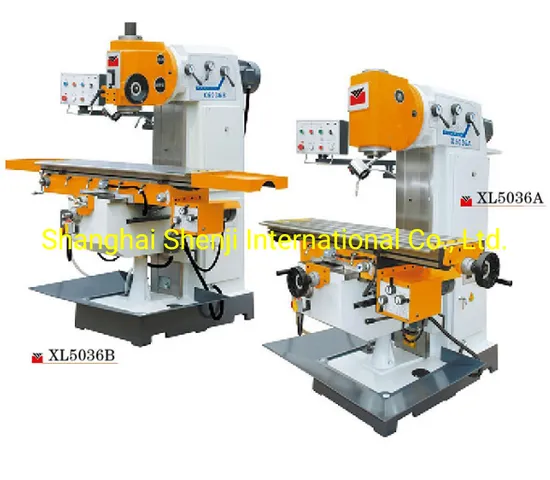

Vertical milling machine XL5036A Standard configuration
Adopt the rectangular guide rail steel good stability is strong Rapid feed in table X, Y and Z direction X, Y direction automatic feed Table and guide surface high-frequency quenching
MAIN TECHNICAL DATA
| ITEM
| XL5036A
| XL5036B
|
Spindle taper
| mm
| 7.24 ISO50
| 7.24 ISO50
|
Spindle nose to table distance
| mm
| 60-540
| 60-540
|
Spindle hole center to the cantilever plane distance
| mm
| 325
| 325
|
Spindle speed range
| rpm
| 60-1700
| 60-1700
|
Table size
| mm
| 1500X360
| 1500X360
|
Table travel
| mm
| 700X320(830X320)
| 1000X320(1300X320)
|
Motor power
| kw
| 4(5)/0.75/1.1/0.09
| 4(5)/0.75/1.1/0.09
|
Overall dimensions
| mm
| 1700X1680X1880
| 2200X2600X1880
|
Machine weight
| T
| 2.2/2.3
| 2.4/2.6
|
>>
