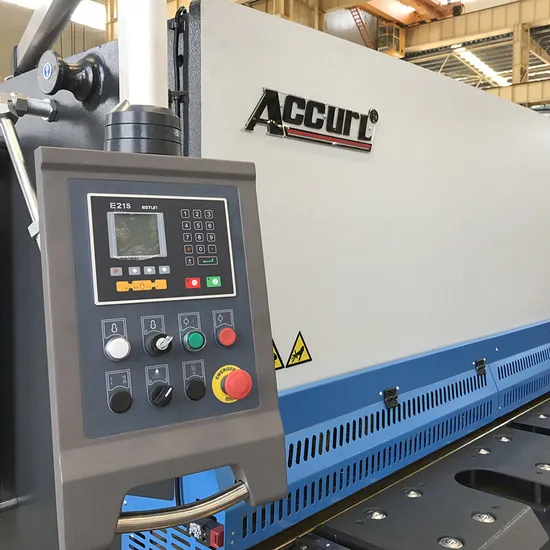

| Accurl Hydraulic Swing Beam Plate Shearing Machine The hydraulic swing beam shear is the perfect solution for cutting sheet metal with thicknesses between 4mm and 6000mm.The hydraulic swing beam shear can handle the large dimensions required in tube and roll forming manufacturing lines.Besides handing large dimensions,the hydraulic swing beam shear can also be configured for piercing and blanking.Here at Accurl,we guarantee that we can provide you with the hydraulic shear that will get the job done. Standard Components Frame produced in China by ACCURL accurately dimensioned through FEA Multi-edge blades for cutting aluminum,carbon steel ,and stainless steel Cutting=line illumination and wire for shadow-line cutting Stroke counter Quick cutting-length adjustment Hydraulic and electrical overload protection Squaring arm and front support arms Bed infill plates with ball transfers Delta inverter with ball screw and polished rod with 0.01 mm accuracy Backgauge adjustment according to blade gap Backgauge retraction feature Sub-program and programming loop Sequence repeat function Auto-cutting(Flying cut) Machine CONTROL Name: NUMERICAL CONTROL Brand: Estun E21 NC control Original: China The ACCURL® Estun E21 NC control provides a complete and compact shear control application. Including backgauge control, gap control and stroke length limitation this state of the art electronics based unit makes a versatile solution. Main Features Name: SHEET PRESS CYLINDERS Brand: ACCURL Original: ACCURL The ACCURL® cnc hydraulic shearing machine is equipped with cylinders which press on the metal sheet with an automatically regulate-able pressure which varies according to the pressure required by the thickness and consistency of the material to be cut. Machine Parts Name: HYDRAULIC SYSTEM Brand: ACCURL Original: CHINA The ACCURL® cnc hydraulic shearing machine is equipped with a hydraulic system capable of simplifying the operator's work enormously and to facilitate all the adjustments necessary for obtaining the best quality cut. Made up of the highest quality, all European, components, the hydraulic unit is a guarantee of long life for the machine as. Optional Equipment DELEM DAC 310 CNC Control Pneumatic Sheet Supporting System Table Mounted Sheet Angle Cutting Gauge CNC Control with input of Plate Thickness
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
