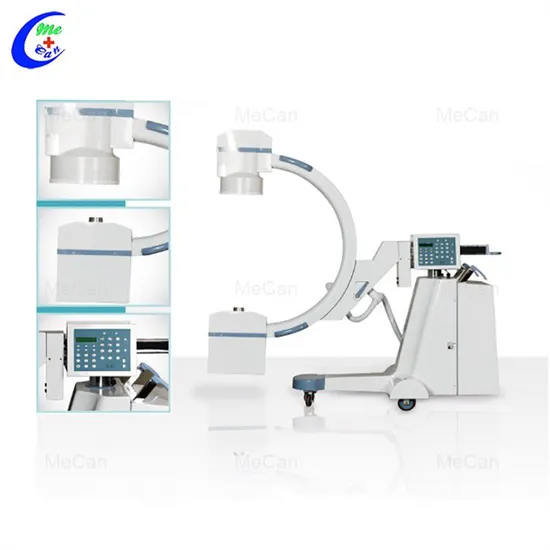

Surgical Mobile Fluoroscopy C-Arm Xray C Arm X Ray Machine for Sale

Product Description

Surgical Mobile Fluoroscopy C Arm X Ray Machine for Sale
Model: MCI0735
Our 3.5KW c arm equipment with many high quality c arm components, such as high quality c arm image intensifier, all of the c arm x ray machine parts made by MeCan Medical, it is a c arm x ray fluoroscopy machine, mainly used in orthopedic surgery, and the use of c arm machine is very simple. it is a new one, isn't used c arm.
Features
1.C arm equipment adopts the true digital high frequency host, gets the clearest and richest image with minimum dose, greatly
2.reduces the potential harm of X-ray to clinicians and patients.
3.The unique double displays make operation intuitive, easy and reliable.
4.The vertical and horizontal movements and rotation of C-arm are all electric maneuvered.
5.Micro-computer based controller features with Picture Collection & Storage Workstation.
6.Directly upgrade the digital image system, to provide a short cut for your heavy file managements.
7.EMC Test Prooved.
Specification of our C-Arm Machine

Generator Power/Frequency	3.5KW/40KHz
Radiography KV	40-110 KV
Radiography mA	31-70 mA
Fluoroscopy KV	40-110 KV
Fluoroscopy mA	0.3-5 mA
Pulse Fluoroscopy	4-10 mA
Focus Size	1.5*1.5/0.6*0.6mm
Anode Heat Capacity	30KJ
Heat Capacity of Generator and Anode	500 KJ
Collimator	Iris, Auto-tracking, Variable Visual Field, Double Leaf
Distance from Focus to Image Intensifier (SID)	1060 mm
C-arm Depth	750 mm
C-arm Open	810 mm
C-arm arc Glide with Full Balance	130° (+90°~ -40°)
C-arm Rotation (Motored)	±180°
Upward and Downward Movement (Motored)	400mm
Horizontal Movement (Motored)	200mm
Horizontal Swing Angle	±15°
Image Intensifier	Imported 9" Metal Screen Intensifier
Grids	Scattered Radiation Grids (Imported)
Size of Image Bucky (Optional)	8"*10"
Camera	High Speed CCD Camera(Imported)
Monitor	15" High Resolution LED Monitor *2
Control Panel	Two Operation Control Panel on Both Sides, Display Error Codes
Image Memory	Internal Computer Work Station (Store 100,000+ Images) , DICMO 3.0
Supply Power	220V, 50Hz, 20A
Power Capacity	4KVA

Test images of our C Arm Machine
Our C-Arm Machine in Exhibition
More details of our C-Arm X-Ray Machine

---
