Grosper Wgl240 Drying and Cooling Device Used in Corn Flaked Production Line Moisture Content of The Finished Product Is Controlled at 13-14%

Product Description

Main structure and configuration 1:Distributing box: It is formed by bending and combining steel plates ,with a distributing plate inside ,and the steel plate is made of 201 stainless steel; 2:Distribulting box :The box body is welded by 201 stainless steel plate, with a distribulting plate inside, the angle can be adjusted ,the distribulting plate is 201 stainless steel ; the external positioning handle, splint and reinforcing channel steel are made of carbon steel ;
3:Head box: the head box is a frame structure welded by section steel,with a length of 2200mm. The section steel, support plates on both sides, and the material below the material support plate are made of high-quality carbon steel , while the material spoort plate, blanking platform, and support chain bending plate are all 201 stainless steel;
4:Middle box: the middle box has seven sections, each section is 2100mm in length, the outer and top plates
are made of 201 stainless steel bent and combined, the ventilation plate and chain plate supporting materials on the inner side are 201 stainless steel ,and the support below and above the ventilation plate all are made of carbon steel. There are observation holes and access doors on both sides; There are temperature transmitters on three of the boxes, which are connected to the central control room to monitor the temperature of materials.
5:Tail box: the tail box is a frame structure welded by section steel,with a length of 2200mm . The section steel and support plates on both sides , below the material support plate, and the discharge port are made of high quality carbon steel. 201 stainless steel ;
6:Transmission device: the transmission system is composed of a reduction motor, a driving sprocket group, a chain, and a driven chain wheel group. The reduction motor and the driving chain
wheel group are fixed on the tail box and the driven chain wheel group is fexed on the head box. The chain and geared motor are purchased parts, the splint of the chain is made of 201 stainless steel , the pin and roller are made of high-alloy wear-resistant materials; the sprocket is made of 40Cr alloy steel and is quenched ,and the sprocket shaft is quenched and tempered with 45 steel

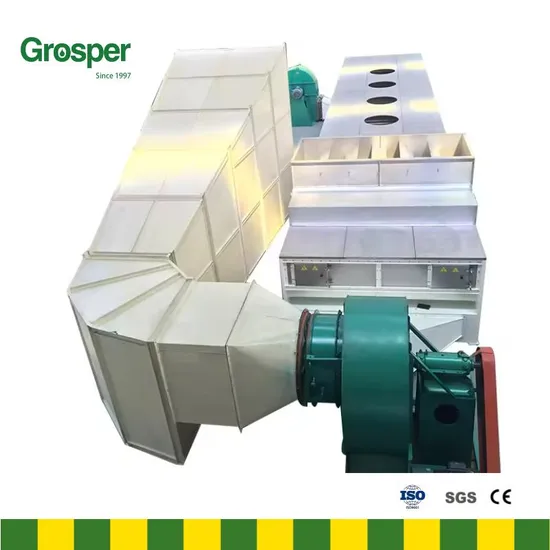

7:Hot air system: it consists of aire preheater, ventilation duct, hot air blower, damper device ,and air outlet. The air outlet is connected to the lower part of the head box, and the hot air is blown into the drying box to heat the material to dry and gelatinize the material. The air preheater and fan are made by professional manufacturers , and the production standards are subject to professional manufacturers; the rest are made of section steel and steel plate , all of which are made of high-quality carbon steel.
8:Cold air system: it is composed of fan, damper device and air outlet. The air outlet is connected to the lower part of the tail box, and the cold air is blown into the drying box to cool the material. The fan is made by a professional manufacturer ,and the production standard is subject to the professional manufacturer; the rest are made of section steel and steel plate, all of which are made of high-quality carbon steel . Note: all unmarked parts are selected according to the actual product of the supplier. Product Paramenters

Item	Unit	Parameter
Model	-	WGL240
Trade Mark		Grosper
Capacity	T/H	3-10
Raw material		Corn/sorghum/soybean puffing/barley
Total power		55KW+15KW+2.25KW
Overall dimension(length× width× height)	MM	27500*3200

Product Show

FAQ
1: What kind terms of payment can be accepted? A: For terms of payment, by T/T
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO certificate .
3: What about the delivery time?
A: 60 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 set

---
